EUP8057

Features: 􀁺· 4.5V-15V Wide Input Voltage Range􀁺· Ideal for Single Cell (4.1V or 4.2V) and Dual-Cell (8.2V or 8.4V) Li-Ion or Li-Pol Batteries􀁺· Preset Charge Voltage with ±1% Accuracy􀁺· Programmable Charge Current up to 1A􀁺· Constant-Current/Constant Vo...

product image

EUP8057 Picture
See larger image
SeekIC No. : 004338742 Detail

EUP8057: Features: 􀁺· 4.5V-15V Wide Input Voltage Range􀁺· Ideal for Single Cell (4.1V or 4.2V) and Dual-Cell (8.2V or 8.4V) Li-Ion or Li-Pol Batteries􀁺· Preset Charge Voltage with ...

EUP8057 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EUP8057
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

􀁺· 4.5V-15V Wide Input Voltage Range
􀁺· Ideal for Single Cell (4.1V or 4.2V) and Dual-Cell (8.2V or 8.4V) Li-Ion or Li-Pol Batteries
􀁺· Preset Charge Voltage with ±1% Accuracy
􀁺· Programmable Charge Current up to 1A
􀁺· Constant-Current/Constant Voltage Operation
􀁺· Preconditioning of Low Voltage Cells
􀁺· Optional Cell-Temperature Monitoring Before and During Charge
􀁺· Charge Status Output for Single of Dual Led or Host Processor Interface
􀁺· Automatic Battery Recharge
􀁺· Charge Termination by Minimum Current
􀁺· Automatic Low-Power Sleep Mode When Input Power is Removed
􀁺· Available in TSSOP-8, MSOP-8 and SOP-8 Package
􀁺· RoHS Compliant and 100% Lead (Pb)-Free




Application

􀁺· Cellular Phones / PDAs/ MP3 Players/DSC
􀁺· Handheld Instruments




Pinout

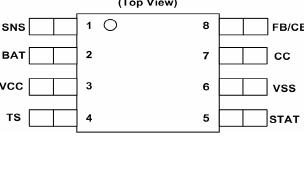

Connection Diagram




Specifications

􀂄 Supply voltage, (Vcc with respect to GND) -------------------------------------------------- --0.3 to +18V
􀂄 Input voltage, SNS, BAT, TS, CE (all with respect to GND)-------------------------- -0.3V to VCC +0.3V
􀂄 Sink current (STAT pin) not to exceed PD -------------------------------------------------------------- 20mA
􀂄 Source current (STAT pin) not to exceed PD ---------------------------------------------------------- 10mA
􀂄 Output current (CC pin) not to exceed PD --------------------------------------------------------------40mA
􀂄 Maximum Junction Temperature, TJ ------------------------------------------------------------------- 150°C
􀂄 Storage temperature range, Tstg -----------------------------------------------------------65°C to 150°C
􀂄 Lead temperature (soldering, 10s) ------------------------------------------------------------------ 300°C
􀂄 Package Thermal Resistance, JA- MSOP8 --------------------------------------------------------- 80°C/W
JA- TSSOP8 -------------------------------------------------------- 70°C/W
JA- SOP8 --------------------------------------------------------- 67.9°C/W
􀂄ESD Rating -------------------------------------------------------------------------------------------- Note 1
Note 1: IC devices are inherently ESD sensitive; handling precautions required.




Description

The EUP8057 is a highly advanced Lithium-Ion (Li-Ion) and LithiumPolymer (Li-Pol) linear charge management controller for use in cost sensitive and portable applications. It combines high accuracy constant-current and constant-voltage regulation, cell preconditioning, temperature monitoring, automatic charge termination, charge-status indication, in a space-saving MSOP-8, TSSOP-8 package.

The EUP8057 applies a constant current up to 1A to the battery and the charge current can be programmed externally with a sense-resistor.

The EUP8057 automatically terminates the charge cycle when the charge current drops to the charge termination threshold (ITERM) after the charge-regulation voltage is reached.

When the input supply is removed, the EUP8057 automatically enters a low-power sleep mode.

A battery charge state output pin is provided to indicate battery charge status through a display LED. The battery charge status output is a serial interface which may also be read by a system microcontroller.
