EUP7987

Features: ` 300mA Guaranteed Output Current (500mA for Pulsed Loads)` 60dB PSRR at 1kHz` 50 VRMS Output Voltage Noise` 140mV Dropout at 300mA Load` Low 110A No-Load Supply Current` 1A Shutdown Current` Fast Start-up Time` Stable With 2.2F Ceramic Output Capacitors` Thermal Shutdown and S...

product image

EUP7987 Picture
See larger image
SeekIC No. : 004338737 Detail

EUP7987: Features: ` 300mA Guaranteed Output Current (500mA for Pulsed Loads)` 60dB PSRR at 1kHz` 50 VRMS Output Voltage Noise` 140mV Dropout at 300mA Load` Low 110A No-Load Supply Current` 1A Shutdow...

EUP7987 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EUP7987
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` 300mA Guaranteed Output Current (500mA for
   Pulsed Loads)
` 60dB PSRR at 1kHz
` 50 VRMS Output Voltage Noise
` 140mV Dropout at 300mA Load
` Low 110A No-Load Supply Current
` 1A Shutdown Current
` Fast Start-up Time
` Stable With 2.2F Ceramic Output Capacitors
` Thermal Shutdown and Short-Circuit Protection
` SOT23-5 and SOT23-6 Package
` RoHS Compliant and 100% Lead (Pb)-Free


Application

·  Wireless Handsets
·  Battery Powered Electronics
·  Portable Information Appliances

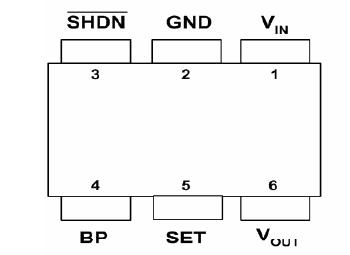

Pinout

Connection Diagram


Specifications

  VIN, VOUT,VSHDN , VSET , VCC, -------------------------------------------------------------- -0.3V to 6V
  Storage Temperature Range -----------------------------------------------------------65°C to 160°C
  Junction Temperature (TJ) ------------------------------------------------------------------------ 150°C
  Lead Temperature (10 sec.) ----------------------------------------------------------------------260°C


Description

The EUP7987 low-noise, low-dropout, linear regulator operates from a 2.5V to 5.5V input and is guaranteed to deliver 300mA.

The EUP7987 is stable with small 2.2F ceramic capacitor. Its performance suits battery powered applications because of its shutdown mode (60 nA typ), low quiescent current (110A typ), and LDO voltage (140mV typ). The low dropout voltage allows for more utilization of a battery's available energy by operating closer to its end-of-life voltage.

The EUP7987 is available in 1.8V, 2.5v, 2.8V, 3V, 3.3V, and adjustable versions.
