EUP7201

Features: ` Up to 150mA Output Current (Each LDO)` Dual Shutdown Pins Control Each Output` 124VRMS Low Noise Output` Current Limiting and Thermal Protection` Short Circuit Protection` 100mV Dropout at 100mA Load` Current Limiting Protection` Available in SOT23-6 ,TDFN-6 and USP-6 Package` RoHS Com...

product image

EUP7201 Picture
See larger image
SeekIC No. : 004338716 Detail

EUP7201: Features: ` Up to 150mA Output Current (Each LDO)` Dual Shutdown Pins Control Each Output` 124VRMS Low Noise Output` Current Limiting and Thermal Protection` Short Circuit Protection` 100mV Dropout ...

EUP7201 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EUP7201
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Up to 150mA Output Current (Each LDO)
` Dual Shutdown Pins Control Each Output
` 124VRMS Low Noise Output
` Current Limiting and Thermal Protection
` Short Circuit Protection
` 100mV Dropout at 100mA Load
` Current Limiting Protection
` Available in SOT23-6 ,TDFN-6 and USP-6 Package
` RoHS Compliant and 100% Lead (Pb)-Fre




Application

· Cellular Phones
· Camera, Video Recorders
· PDAs
· Hand-held Equipment

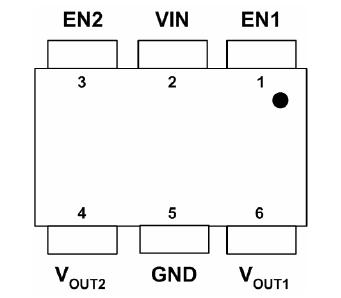

Pinout

Connection Diagram




Specifications

` Supply Input Voltage --------------------------------------------------------------------------------------- 6V
` Power Dissipation, PD @ TA =25
SOT23-6 ----------------------------------------------------------------------------------------------------- 0.4W
` Package Thermal Resistance
SOT23-6, JA -------------------------------------------------------------------------------------------250°C/W
` Lead Temperature (Soldering,10 sec .) -------------------------------------------------------------260°C
` Storage Temperature Range ------------------------------------------------------------- -65°C to 150°C
` ESD Rating
HBM ---------------------------------------------------------------------------------------------------------- 2kV




Description

The EUP7201 is highly accurate, Dual, low noise, CMOS LDO voltage regulator. Performance features include low output noise, high ripple rejection ratio, low dropout and very fast turn-on times.


The EUP7201 is also fully compatible with low ESR ceramic capacitors, reducing cost and improving output stability. This high level of output stability is maintained even during frequent load fluctuations, due to the excellent transient response performance and high PSRR achieved across a broad range of frequencies.


The EN function allows the output of each regulator to be turned off independently, resulting in greatly reduced power consumption. The EUP7201 is available in the SOT23-6 , TDFN-6 and USP-6 package.
