EUA6011A

Features: ` Advanced DC Volume Control With 2-dB Steps From -40 dB to 20 dB-Fade Mode-Maximum Volume Setting for SE Mode-Adjustable SE Volume Control Referenced to BTL Volume control` 3 W into 3- Speakers` Stereo Input MUX` Differential Inputs` RoHS Compliant and 100% Lead (Pb)-FreeApplication· No...

product image

EUA6011A Picture
See larger image
SeekIC No. : 004338667 Detail

EUA6011A: Features: ` Advanced DC Volume Control With 2-dB Steps From -40 dB to 20 dB-Fade Mode-Maximum Volume Setting for SE Mode-Adjustable SE Volume Control Referenced to BTL Volume control` 3 W into 3- Sp...

EUA6011A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EUA6011A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Advanced DC Volume Control With 2-dB Steps From -40 dB to 20 dB
-Fade Mode
-Maximum Volume Setting for SE Mode
-Adjustable SE Volume Control Referenced to BTL Volume control
` 3 W into 3- Speakers
` Stereo Input MUX
` Differential Inputs
` RoHS Compliant and 100% Lead (Pb)-Free




Application

· Notebook PC
· LCD Monitors
· Pocket PC




Pinout

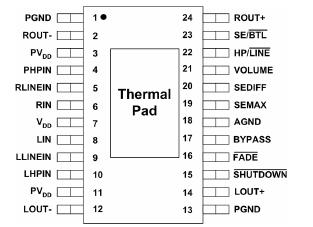

Connection Diagram




Specifications

` Supply voltage, VDD----------------------------------------------------------------------------- 6V
` Input voltage, VI----------------------------------------------------------0.3 V to VDD +0.3 V
` Continuous total power dissipation--- internally limited (see Dissipation Rating Table)
` Operating free-air temperature range, TA---------------------------------- 40°C to 85° C
` Operating junction temperature range, TJ ---------------------------------40°C to 150°C
` Storage temperature range, Tstg------------------------------------------- 65°C to 150°C
` Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds--------------------260°C
` Thermal Resistance
JA (TSSOP) ---------------------------------------------------------------------------------87.9°C/W




Description

The EUA6011A is a stereo audio power amplifier that drives 3 W/channel of continuous RMS power into a 3- load. Advanced dc volume control minimizes external components and allows BTL (speaker) volume control and SE (headphone) volume control. Notebook and pocket PCs benefit from the integrated feature set that minimizes external components without sacrificing functionality.


To simplify design, the speaker volume level is adjusted by applying a dc voltage to the VOLUME terminal. Likewise, the EUA6011A delta between speaker volume and headphone volume can be adjusted by applying a dc voltage to the SEDIFF terminal. To avoid an unexpected high volume level through the headphones, a third terminal, SEMAX, limits the headphone volume level when a dc voltage is applied. Finally, to ensure a smooth transition between active and shutdown modes, a fade mode ramps the volume up and down.
