Features:

`9-bit wide undershootand overshoot clamping functions.
`Breakdown voltage : V_BR = 6.1V min.
`Forward voltageV_F = 1.25V max.@ I_F=200mA
`Low capacitance: C =130pF@ V_RM=5.25V.
`Low clamping voltage.
`200W peak pulse power (8/20s).

Application

Whereprotection in ESDsensitiveequipmentis required, such as :
- Computers
- Printers
- Communicationsystems

Pinout

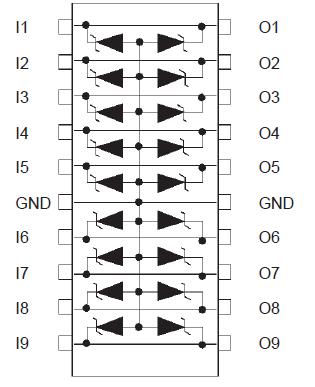

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_PP	IEC1000-4-2 - contact discharge	25	kV
		16
		9
P_PP	Peak pulse power (8/20s)	200	W
T_stg	Storage temperature	- 55 to + 150	°C
T_j	Maximum junction temperature	125	°C

Description

The ESDA6V1FUx is a monolithicTRANSIL array designed to provide a 9-bit wide undershoot and overshoot clamping function in association with ESD protection level of up to 25 kV.

The ESDA6V1FUx provides best efficiency when using separated inputs and outputs, in the so called 4-point structure.
