ESDA25W

TVS Diode Arrays 25V 400W Unidirect

product image

ESDA25W Picture
See larger image
SeekIC No. : 00225412 Detail

ESDA25W: TVS Diode Arrays 25V 400W Unidirect

ESDA25W Data Sheet

floor Price/Ceiling Price

US $ .16~.27 / Piece | Get Latest Price
Part Number:
ESDA25W
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~250
  • Unit Price
  • $.27
  • $.2
  • $.17
  • $.16
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Polarity : Unidirectional Channels : 2 Channels
Operating Voltage : 24 V Package / Case : SOT-323-3
Capacitance : 65 pF Breakdown Voltage : 30 V
Minimum Operating Temperature : - 40 C Maximum Operating Temperature : + 125 C
Series : ESDAxxxWx Packaging : Reel

Description

Clamping Voltage :
Polarity : Unidirectional
Maximum Operating Temperature : + 125 C
Packaging : Reel
Channels : 2 Channels
Operating Voltage : 24 V
Minimum Operating Temperature : - 40 C
Capacitance : 65 pF
Breakdown Voltage : 30 V
Package / Case : SOT-323-3
Series : ESDAxxxWx


Features:

·2 unidirectional TRANSILÔ functions.
·Breakdown voltage : VBR = 25V min.
·Low leakage current : < 1mA.
·Very low PCB space consuming : 4.2mm2 typically.


Application

·Computers
·Printers
·Communication systems
·Cellular phones handsets and accessories
·Other telephone sets
·Set top boxes


Pinout

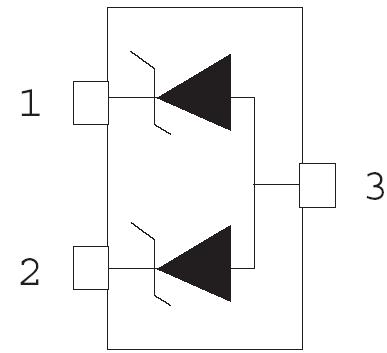

Connection Diagram


Specifications

Symbol Parameter Value Unit
VPP ESD discharge MIL STD 883C - Method 3015-6
IEC61000-4-2, air discharge
IEC61000-4-2, contact discharge		 25
16
9		 kV
PPP Peak pulse power (8/20ms) 400 W
Top Operating temperature range Note 1 - 40 to + 85 °C
Tstg Junction temperature 150 °C
Tj Storage temperature range -55 to +150 °C
TL Lead solder temperature (10 seconds duration) 260 °C



Description

The ESDA25W is a 2-bit wide monolithic suppressor designed to protect components which are connected to data and transmission lines against ESD.

ESDA25W clamps the voltage just above the logic level supply for positive transients, and to a diode drop below ground for negative transients.




Parameters:

Technical/Catalog InformationESDA25W
VendorSTMicroelectronics (VA)
CategoryCircuit Protection
Package / CaseSC-70-3, SOT-323-3
PackagingDigi-Reel?
Polarization2 Channel Array - Unidirectional
Power (Watts)400W
Voltage - Reverse Standoff (Typ)24V
Voltage - Breakdown25V
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names ESDA25W
ESDA25W
497 6689 6 ND
49766896ND
497-6689-6
