ES8380

Features: • Built-in RF amplifier and servo controller.• High-performance focusing, sledding, tracking and CLV/CAVspindle servo control.• DVD-Video, DVD-R/RW, DVD+R/RW, SVCD, VCD, CD-ROM,CD-R/RW, CD-DA support.• DivX Home Theater quality video at full screen (D1)(ES8380FCA/...

product image

ES8380 Picture
See larger image
SeekIC No. : 004338211 Detail

ES8380: Features: • Built-in RF amplifier and servo controller.• High-performance focusing, sledding, tracking and CLV/CAVspindle servo control.• DVD-Video, DVD-R/RW, DVD+R/RW, SVCD, VCD, ...

ES8380 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ES8380
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Built-in RF amplifier and servo controller.
• High-performance focusing, sledding, tracking and CLV/CAV
spindle servo control.
• DVD-Video, DVD-R/RW, DVD+R/RW, SVCD, VCD, CD-ROM,
CD-R/RW, CD-DA support.
• DivX Home Theater quality video at full screen (D1)
(ES8380FCA/CB/CC/CD only).
• MPEG-4 Advanced Simple Profile video including GMC and
QPEL support (ES8380FBA/BB/CA/CB/CC/CD only).
• Pixel-adaptive de-interlacer.
• Scaler for video up-conversion to 1080i/720p.
• NTSC/PAL encoder with six video DACs for composite,
S-Video, and component video outputs.
• Macrovision protected, NTSC/PAL interlaced, and progressive
scan (480p/576p) video output.
• HD component output for JPEG picture and video.
• CCIR656/601 YUV 4:2:2 input/output.
• 2-channel audio ADC.
• SPDIF digital audio input and output.
• 8-channel audio DAC (ES8380FAA/AC/BA/CA/CC only).
• 8-channel PWM controller for Class D power bridges
(ES8380FAB/AD/BB/CB/CD only).
• USB full-speed host controller for photo and music playback.
• OSD controller supports 256 colors in 8 degrees of
transparency.
• Sub-picture Unit (SPU) decoder supports karaoke lyric, subtitles
and EIA-608 compliant Line 21 captioning.
• JPEG digital photo support (Kodak Picture CD™ and Fujifilm
FujiColor CD™).
• Dolby Digital, Dolby ProLogic, and Dolby ProLogic II.
• DTS Surround (ES8380FAC/AD/CC/CD only).
• SRS TruSurround®.
• MPEG Multichannel, AAC, MP3 and WMA.
• Professional karaoke with full scoring scheme.
• Serial UART port.
• I2C master slave mode interface.
• 16-bit DRAM interface for up to 128-Mb capacity.
• 8-bit EPROM/Flash interface for up to 4 banks x 4 MB.
• Lead-free leads.

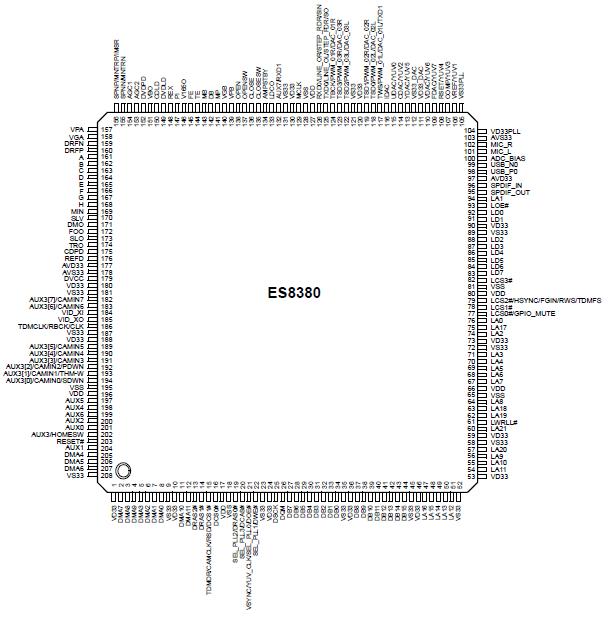

Pinout

Connection Diagram


Description

The ES8380 Phoenix™ processor is a single-chip DVD processor supporting DVD video, MPEG-4 ASP and DivX® Home Theater playback.

The ES8380 Phoenix DVD processor is ideal for stand-alone DVD players, DVD receivers, DVD/VCR combos and DVD A/V mini-component systems. It incorporates a high-quality deinterlacer and a TV encoder that supports HD (720p/1080i) and Macrovision™ protected progressive (480p/576p) and interlaced video output. The HD output is ideal for the display of JPEG pictures, and when used with the built-in video scaler, allows up-conversion of unprotected video to HD resolution.

The ES8380 Phoenix processor is built on the ESS proprietary dual CPU Programmable Multimedia Processor (PMP) core consisting of 32-bit RISC and 64-bit DSP processors that deliver the best DVD feature set. It integrates a servo controller, RF amplifier, read channel, ECC, servo DSP, and MCU. The Phoenix processor employs a unified memory architecture to ensure the lowest possible system memory cost. A USB full-speed host controller is built-in for connection to Flash memory cards.

The ES8380 Phoenix processor servo controller supports all popular optical pick-up units (OPU). Its high performance error handling allows for playback of scratched and fingerprinted media.

The ES8380 Phoenix processor has unmatched audio features including an integrated high quality 8-channel audio digital to analog converter (DAC) and a 2-channel analog to digital converter (ADC). Additionally, it supports the DVDAudio, CD-DA, HDCD, MP3, WMA, AAC, and Dolby ProLogic™ II digital audio formats and Karaoke.

The ES8380 Phoenix DVD processor is available in a 208- pin Plastic Quad Flat Pack (PQFP) device package.
