Features: • Single-chip DVD processor incorporating all front-end and back-end functions.
• Unified memory architecture.
• Proven focusing, sledding, tracking, and CLV/CAV spindle servo control.
• Proven ECC, EFM/EFM+ demodulation, and EDC circuit.
• Built-in ADCs and DACs for servo control signals.
• Direct interface to the ES6603 servo AFE chip.
• Integrated NTSC/PAL encoder with pixel-adaptive de-interlacer and five 10-bit 54 MHz video DACs.
• DVD-Video, DVD-VR, VCD 1.1 and 2.0, and SVCD.
• Media playback with CD-ROM, CD-R/RW, DVD-R/RW,and DVD+R/RW.
• Up to 7.1 channel audio outputs.
• Direct interface of 16-bit DRAM up to 128-Mb capacity.
• Direct interface for up to 4 banks of 8-bit EPROM or Flash EPROM for up to 4 MB per bank.
• Macrovision 7.1 for NTSC/PAL interlaced video.
• Macrovision AGC 1.03-compliant for 480p progressive scan video.
• Simultaneous composite, S-video and YUV outputs.
• CCIR 656/601 YUV 4:2:2 output.
• OSD controller supports 256 colors in 8 degrees of transparency.
• Subpicture Unit (SPU) decoder supports karaoke lyric,subtitles, and EIA-608 compliant Line 21 Captioning.
• SmartLogo for custom JPEG wallpaper.
• JPEG digital photo support (Kodak Picture CD™ and Fujifilm FujiColor CD™).
• ESS Music Slideshow™.
• Windows™ Media Audio (WMA).
• Bass management.
• Dolby Digital (AC-3), Dolby Pro Logic™, and Pro Logic II.
• DTS™ surround (ES6629D only).
• S/PDIF digital audio input and output.
• MPEG AAC and Multichannel.
• SRS TruSurround.

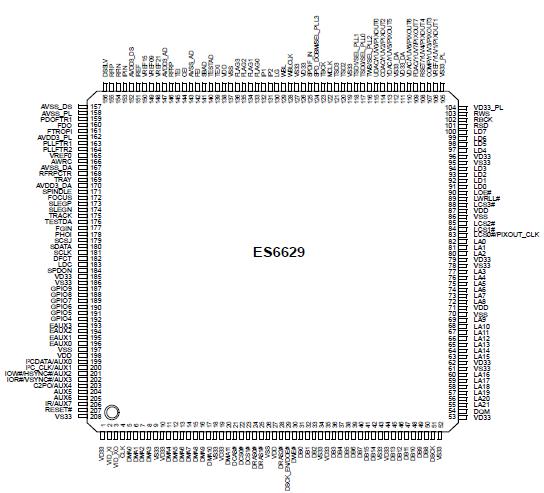

• Professional karaoke with full scoring scheme.Pinout
DescriptionThe ES6629 VibrattoII processor is a highly integrated single-chip DVD solution that integrates read channel,ECC, Servo DSP, MCU, and MPEG-2 decoder that has a state-of-the-art 480p/576p progressive-scan video feature to provide brilliant and sharp, flicker-free video output, and S/PDIF input and output support. The ES6629 performs audio/video stream data processing, TV encoding,Macrovision copy protection, DVD system navigation,system control, and housekeeping functions. The Vibratto-II DVD processor is built on the ESS proprietary dual CPU Programmable Multimedia Processor (PMP) core consisting of 32-bit RISC and 64-bit DSP processors and offers the best DVD feature set. The processing units enable simultaneous parallel execution of system commands and data processing to perform specialized encoding and decoding tasks.
The ES6629 RISC processor performs bit stream parsing, control audio data output, transfer video and audio data to the vector engine and service system control and housekeeping functions. The vector engine performs audio and video micro-code processing required by A/V standards, such as Dolby Digital, MPEG and JPEG imaging. These processing tasks include video motion compensation and estimation, loop filtering, Discrete Cosine Transforms (DCT), inverse DCT, quantization, and inverse quantization.
The ES6629 Vibratto-II DVD processor supports all popular pick-up units, industry standard I2S audio data input and output, EPROM and DRAM access. It also supports both letterbox and pan-and-scan displays, sub-picture overlay, and On- Screen Display (OSD).
The ES6629 Vibratto-II's Unified Memory Architecture enables the lowest possible system memory cost by consolidating multiple memory subsystems into a single unit.In addition, the Vibratto-II DVD solution offers support for Karaoke CD+G, HDCD, CD-DA, MP3, and WMA.
The ES6629 Vibratto-II DVD processor with DTS support is offered with the ES6629D, which has the same pinout as the standard ES6629. The ES6629 and ES6629D DVD processors are available in a 208-pin Plastic Quad Flat Pack (PQFP) device package.
ES6629 Data Sheet
