Features:

Multi-function measurementsystem:
Analogtodigital converter.
Shortcircuit beeper.
Frequencycounter.
Frequency counter, auto range from 2KHz to 20MHz
Lowbatterydetector.
Displayholdand Max/Min.
TriplexLCD display.
Full31/2-Digit Display.
Annunciators-Hold, Max/Min, KHz, MHz,Low-bat,Continuance.
1annunciator drivepin forunit display.
3 decimal point drivers with 3 independent control pins.
Polaritydriver. Displays"OL"for inputoverrange.
Providesserial dataoutput.
Guaranteedzero reading withzero input.
True polarity indication for precision null detec-tion.
Convenient9Vbattery operation.
LownoiseA/D converter:



Application

Digital panel meters, digital multimeters, thermome-ters,capacitancemeters,pHmeters,photometers,etc.


Pinout

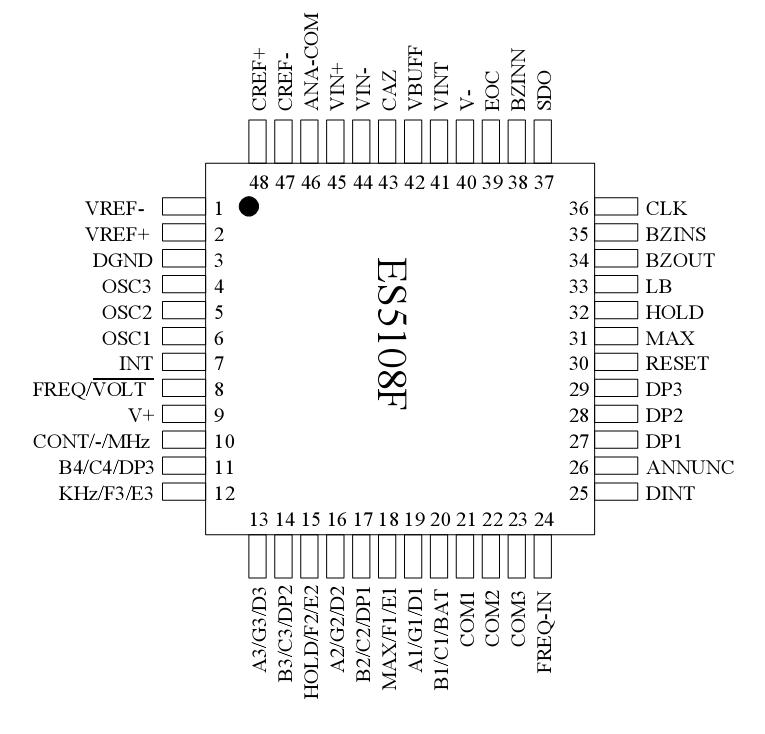

Connection Diagram


Specifications

Characteristic Rating
Supply Voltage (V- to AGND) 12V
AnalogInputVoltage (either input) V+ toV-
ReferenceInputVoltage (either input) V+ toV-
ClockInput DGND toV+
PowerDissipation(plasticpackage) 800mW
Operating Temperature 0to70

Storage Temperature
165to 160
Lead Temperature(soldering,10sec) 270



Description

The ES5108 is design for 3 1/2-Digit Digital Multi-meter which combines an integrated A/D converter, MAX/MIN, hold, short circuit beeper, low battery de-tector,afrequencycounter,and serialdataoutput.A 'HOLD' input allows the ES5108 to hold the cur-rent A/D readout or frequency readout. The frequency counter is auto-ranging from 2KHz to 20MHz over a fivedecade rangewithKHz andMHz annunciators.Short circuit beeper will sound whenever the readout is less than 30 after enabling the short circuit beeper.

Thisfeatureisusefulindetectingshortcircuitswithout watching theLCD. TheES5108provides3independentdecimalpointdriv-ing pins for the manufacturerto determine which deci-mal point or unit is display,the 3 decimal point drivers are built-inES5108.
