Features: • ESS proprietary dual CPU PMP core.
• Integrated TV-encoder.
• VCD 1.1 and 2.0 compatible.
• Composite or S-video output.
• CCIR601 non-square operation.
• NTSC/PAL formats.
• Video error concealment.
• SmartBright feature for adjusting brightness of movies during playback.
• Video scaling and X- and Y-axis interpolation.
• Motion pan and zoom to 4X magnification.
• Video CD 2.0 Playback Control.
• JPEG photos decoding and playback.
• Kodak Picture CD and Fujicolor CD JPEG image viewing.
• SmartColor feature for adjusting skin color of JPEG photos during viewing.
• Trick mode functions.
• Dual microphones inputs.
• 7-band audio graphic equalizer.
• Programmable master clock for external audio DAC.
• Digital echo up to 168 ms delay.
• Karaoke voice recording.
• Karaoke scoring.
• CD+G Karaoke.
• Karaoke and subtitle functions.
• MP3 audio playback.
• CD-DA with CD-Text.
• Vocal reverb simulates a theater acoustic environment.
• Windows Media Audio decoding.
• Flexible design for 512 kB or 2 MB memory.
• Direct servo control.
• Remote control interface for power standby on/off.
• 4-bit On-Screen Display controller with 3-bit blending supports 4 colors in 8 degrees of transparency.
• Power management.

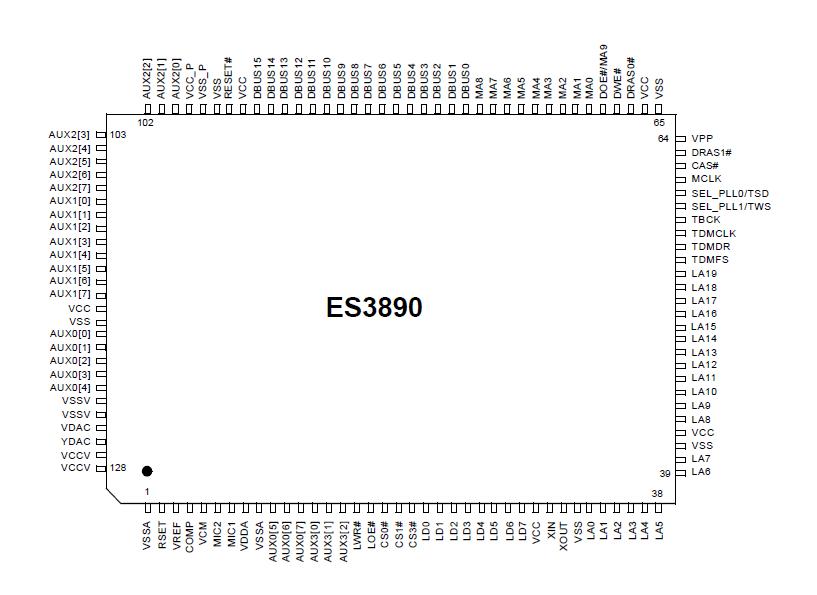

• Optional lead-free leads using 98%-Sn/2%-Cu or 98%-Sn/2%-Bi with ES3890FF.Pinout
DescriptionThe
®
ES3890 single-chip Video CD (VCD) processor is the latest innovation of ESS's family of VCD chips for VCD players. The ES3890 is based on the ESS Programmable Multimedia Processor (PMP) architecture consisting of a 32-bit video controller and a 64-bit video processor and it integrates the TV-encoder, thus eliminating the need for a VCD companion chip.
The ES3890 integrates an audio ADC for microphone inputs, two video DACs for Composite and S-video outputs, and digital echo circuitry. With , VCD player design and board layout become simpler, the VCD system cost is much reduced, and it offers a very flexible design configuration for 512 kB or 2 MB system RAM.
The ES3890 performs all of the functions such as video filtering, NTSC/PAL conversion, audio and video error concealment, and picture zoom in/out up to 4x magnification. It supports On Screen-Display (OSD) with 4 colors in 8 degrees of transparency, Karaoke, and VCD 2.0 Playback Control (PBC).
Features in the ES3890 solution include: a 7-band audio graphic equalizer display with five pre-configured settings and environment effects, Karaoke voice recording for sing-along, and Karaoke scoring.
The ES3890 also offers the ESS SmartBright™ movie brightness feature, the ESS SmartColor™ color balancing feature, as well as the Kodak® Picture CD and Fujicolor® CD JPEG photo viewing features.
The ESS SmartBright™ feature allows the brightness level of VCD movies being played back to be adjusted in real time while the ESS SmartColor feature allows the skin color of JPEG photos being viewed to be enhanced. Other features found with the ES3890 include support for CD+G Karaoke, CD-Text, and Windows™ Media Audio (WMA) decoding and playback.
The ES3890 is available in an industry-standard 128-pin Plastic Quad Flat Pack (PQFP) device package
ES3890 Data Sheet
