EPVP6300

Features: `Clock source:Crystal Oscillator or RC Oscillator`Crystal Oscillator (32.768KHz): with a external crystal`RC Oscillator (32.768KHz): with a external 470Kohm resistor`16k x 13 on chip Program ROM.`256 x 8 on chip data RAM`144 x 8 general purpose registers`16 level stack for subroutine nes...

product image

EPVP6300 Picture
See larger image
SeekIC No. : 004337712 Detail

EPVP6300: Features: `Clock source:Crystal Oscillator or RC Oscillator`Crystal Oscillator (32.768KHz): with a external crystal`RC Oscillator (32.768KHz): with a external 470Kohm resistor`16k x 13 on chip Progr...

EPVP6300 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EPVP6300
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Clock source:Crystal Oscillator or RC Oscillator
`Crystal Oscillator (32.768KHz): with a external crystal
`RC Oscillator (32.768KHz): with a external 470Kohm resistor
`16k x 13 on chip Program ROM.
`256 x 8 on chip data RAM
`144 x 8 general purpose registers
`16 level stack for subroutine nesting
`5 channel 8-bit counters: real time clock/counter (TCC) ,COUNTER1, COUNTER3, COUNTER4, COUNTER5
`1 channel 16-bit counter: COUNTER2
`On-chip watchdog timer (WDT)
`99.9% single instruction cycle commands
`Four operation modes
`13 interrupt source, 5 external (IR , INT1~INT4 ), 8 internal (SPI, ADC, TCC, COUNTER1~5)


Application

VFD controller


Pinout

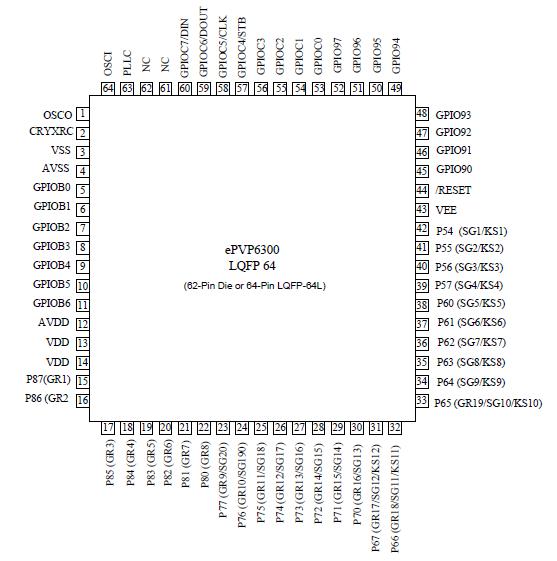

Connection Diagram


Specifications

Parameter
Symbol
Ratings
Unit
Logic supply voltage
VDD
-0.5 to + 6
V
Driver supply voltage
VEE
VDD +0.5 to VDD - 45
V
Logic input voltage
VI
-0.5 to VDD +0.5
V
VFD driver output voltage
VO
VEE -0.5 to VDD +0.5
V
LED driver output current
IO1
+25
mA
VFD driver output current
IO2
-40 (Grid)
-15 (Segment)
mA
Operating ambient temperature
Topt
-40 to +85
Storage temperature
Tstg
-65 to +150



Description

The ePVP6300 is an 8-bit RISC type vacuum fluorescent display (VFD) controller equipped with low power consumption and high speed CMOS technology. This integrated single chip features on_chip watchdog timer (WDT), one time programming ROM (OTP), data RAM, programmable real time clock/counter, internal interrupt, power down mode, built-in four-wire SPI, 10-bit A/D converter, IR detector, and high voltage output for VFD application.
