EPM7032AE

Features: High-performance 3.3-V EEPROM-based programmable logic devices (PLDs) built on second-generation Multiple Array MatriX (MAX® ) architecture (see Table 1)3.3-V in-system programmability (ISP) through the built-in IEEE Std. 1149.1 Joint Test Action Group (JTAG) interface with advanced ...

product image

EPM7032AE Picture
See larger image
SeekIC No. : 004337540 Detail

EPM7032AE: Features: High-performance 3.3-V EEPROM-based programmable logic devices (PLDs) built on second-generation Multiple Array MatriX (MAX® ) architecture (see Table 1)3.3-V in-system programmability...

EPM7032AE Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EPM7032AE
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

High-performance 3.3-V EEPROM-based programmable logic devices (PLDs) built on second-generation Multiple Array MatriX (MAX® ) architecture (see    Table 1)
3.3-V in-system programmability (ISP) through the built-in IEEE Std. 1149.1 Joint Test Action Group (JTAG) interface with advanced pin-locking capability
Built-in boundary-scan test (BST) circuitry compliant with IEEE Std. 1149.1
Supports JEDEC Jam Standard Test and Programming Language (STAPL) JESD-71
Enhanced ISP features
    Enhanced ISP algorithm for faster programming (excluding EPM7128A and EPM7256A devices)
    ISP_Done bit to ensure complete programming (excluding EPM7128A and EPM7256A devices)
    Pull-up resistor on I/O pins during in-system programming
Pin-compatible with the popular 5.0-V MAX 7000S devices
High-density PLDs ranging from 600 to 10,000 usable gates
4.5-ns pin-to-pin logic delays with counter frequencies of up to 227.3 MHz


Pinout

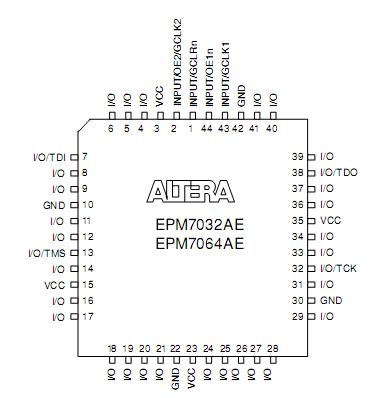

Connection Diagram


Specifications

Symbol
 Parameter
Conditions
Min
Max
Unit
VCC
 Supply voltage
With respect to ground (2)
-0.5
4.6
V
VI
 DC input voltage
-2.0
5.75
V
IOUT
 DC output current, per pin
-25
25
mA
TSTG
 Storage temperature
No bias
-65
150
° C
TA
 Ambient temperature
Under bias
-65
135
° C
TJ
 Junction temperature
BGA, FineLine BGA, PQFP, and
TQFP packages, under bias
135
° C



Description

MAX 7000A (including MAX 7000AE) devices are high-density, highperformance devices based on Altera's second-generation MAX architecture. Fabricated with advanced CMOS technology, the EEPROMbased MAX 7000A devices operate with a 3.3-V supply voltage and provide 600 to 10,000 usable gates, ISP, pin-to-pin delays as fast as 4.5 ns, and counter speeds of up to 227.3 MHz. MAX 7000A devices in the -4, -5, -6, -7 and some -10 speed grades are compatible with the timing requirements for 33 MHz operation of the PCI Special Interest Group (PCI SIG) PCI Local Bus Specification, Revision 2.2 . See Table 2.
