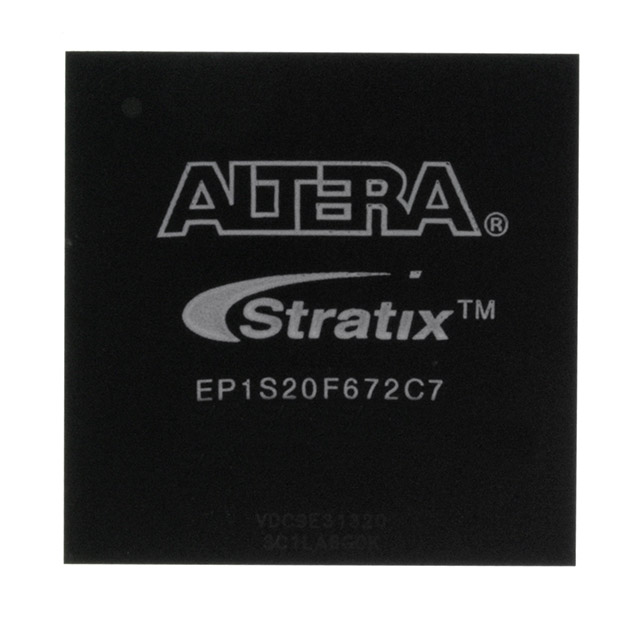

EP1S20F672C7N

Number of Gates: -
Mounting Type: Surface Mount
Operating Temperature: 0°C ~ 85°C
Package / Case: 672-BBGA
Voltage - Supply: 1.425 V ~ 1.575 V
Manufacturer: Altera
Supplier Device Package: 672-BGA (27x27)
Series: Stratix®
Number of I /O: 426
Number of LABs/CLBs: 1846
Number of Logic Elements/Cells: 18460
Total RAM Bits: 1669248


Description

The EP1S20F672C7N is designed as one member of the Stratix family that is based on a 1.5-V, 0.13-m, all-layer copper SRAM process, with densities of up to 79,040 logic elements (LEs) and up to 7.5 Mbits of RAM. And this device can be optimized for DSP applications that enable efficient implementation of high-performance filters and multipliers.

Features of the EP1S20F672C7N are:(1)10,570 to 79,040 LEs; (2)Up to 7,427,520 RAM bits (928,440 bytes) available without reducing logic resources; (3)Up to 16 global clocks with 22 clocking resources per device region; (4)Support for numerous single-ended and differential I/O standards; (5)High-speed differential I/O support on up to 116 channels with up to 80 channels optimized for 840 megabits per second (Mbps); (6)Differential on-chip termination support for LVDS; (7)Support for 133-MHz PCI-X 1.0 in -5 speed-grade devices; (8)Support for 100-MHz PCI-X 1.0 in -6 and faster speed-grade devices; (9)Support for 66-MHz PCI-X 1.0 in -7 speed-grade devices; (10)Support for remote configuration updates.

The absolute maximum ratings of the EP1S20F672C7N can be summarized as:(1)Supply voltage: -0.5 to 2.4 V;(2)DC input voltage: -0.5 to 4.6 V;(3)DC output current, per pin: -25 to 40 mA;(4)Storage temperature: -65 to 150 °C;(5)Junction temperature: 135 °C. If you want to know more information such as the electrical characteristics about the EP1S20F672C7N, please download the datasheet in www.seekic.com or www.chinaicmart.com.

Parameters:

Technical/Catalog Information	EP1S20F672C7N
Vendor	Altera
Category	Integrated Circuits (ICs)
Number of Gates	-
Number of I /O	426
Number of Registers	-
Number of Logic Blocks/Elements	18460
Delay Time	-
Package / Case	672-FBGA
Operating Temperature	0°C ~ 85°C
Voltage - Supply	1.4 V ~ 3.6 V
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	EP1S20F672C7N EP1S20F672C7N 544 1854 ND 5441854ND 544-1854
