ENC28J60

Features:

• IEEE 802.3 Compatible Ethernet Controller
• Integrated MAC and 10BASE-T PHY
• 8-Kbyte Transmit/Receive Packet Dual Port Buffer SRAM
• Receiver and Collision Squelch Circuit
• Supports one 10BASE-T Port with Automatic Polarity Detection and Correction
• Programmable Automatic Retransmit on Collision
• Programmable Padding and CRC Generation
• Programmable Automatic Rejection of Erroneous Packets
• 10 Mbit/s SPI™ Interface
• Buffer:
- Configurable transmit/receive buffer size
- Hardware managed circular receive FIFO
- Byte-wide random and sequential access
- Internal DMA for fast memory copying
- Hardware assisted IP checksum calculation
• MAC:
- Support for Unicast, Multicast and Broadcast packets
- Programmable pattern matching
- Programmable wake-up on multiple packet formats, including Magic Packet®, Unicast, Multicast, Broadcast, specific packet match or any packet
- Loopback mode
• PHY:
- Wave shaping output filter
- Loopback mode
• Operational:
- Outputs for 2 LED indicators
- Transmit and receive interrupts
- 25MHz clock
- Clock out pin with programmable prescaler
- Operating voltage range of 3.14V to 3.45V
- Temperature range: -40°C to +85°C Industrial,
0°C to +70°C Commercial (SSOP only)
• 28-pin SSOP, SOIC, SPDIP and QFN packages

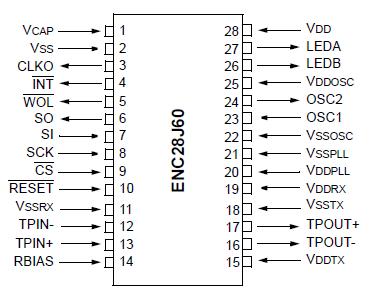

Pinout






Specifications

Parameter NameValueProgram Memory TypeFlashProgram Memory (KB)0CPU Speed (MIPS)0RAM Bytes8Digital Communication Peripherals1-SPI, Temperature Range (C)-40 to 85Operating Voltage Range (V)2 to 3.6Pin Count28

Parameter Name	Value
MAC	Yes
PHY	Yes
TX/RX Dual RAM Buffer(bytes)	8000
Interrupt Pin	1
LEDs	2
Op. Voltage (V)	3.3
Temp. Range Min. (°C)	-40
Temp. Range Max. (°C)	85
Max. Speed (MHz)	25
Serial	SPI

Description

Interface to any PIC® MCU with SPI interface. Use Microchip's free TCP-IP stack.

Microchip's ENC28J60 is a 28-pin, 10BASE-T stand alone Ethernet Controller with on board MAC & PHY, 8 Kbytes of Buffer RAM and an SPI serial interface. With a small foot print package size the ENC28J60 minimizes complexity, board space and cost. Target applications include VoIP, Industrial Automation, Building Automation, Home Control, Security and Instrumentation.Ethernet Application Design Center

The Microchip Technology Inc. ENC28J60 is a standalone Ethernet controller with an industry standard Serial Peripheral Interface (SPI™). It is designed to serve as an Ethernet network interface for any microcontroller equipped with SPI.

The ENC28J60 meets all of the specifications for IEEE 802.3. It incorporates a number of packet filtering schemes to limit incoming packets. It also provides internal DMA for fast data throughput and support for hardware assisted IP checksum calculation.

Communication with the microcontroller is implemented via SPI, with data rates up to 10 Mbit/s. Dedicated pins are used for LED link and activity indication and for transmit and receive interrupts.
