EN5396QI

Mounting Style : SMD/SMT
Packaging : Reel
Operating Temperature Range : - 40 C to + 85 C
Output Current : 9 A
Output Power : 30 W
Input Voltage : 2.375 V to 5.5 V
Switching Frequency : 5 MHz
Package / Case : QFN-58
Output Voltage : 0.75 V


Features:

Tiny Footprint Setting a New Standard For Power Density

Simple Layout, Easy Design

Low Part Count

Excellent Transient Response

Application

This product is an excellent choice for area constrained and noise sensitive applications


Pinout

Specifications

Up to 30W continuous output power

2.4 V to 5.5 V input range

Up to 93% peak efficiency

10 mm x 12 mm x 1.85 mm QFN package

Description

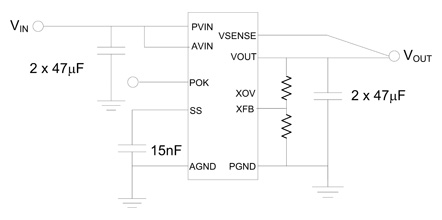

The Enpirion EN5396QI represents a revolution in low-power switching converters. The total solution footprint is 282 mm2, without compromising efficiency. Requiring as few as five external components, the EN5396QI makes regulator design a breeze.

A complete power system-on-a-chip (PowerSoC), the EN5396QI integrates power switches, Inductor, gate drive, controller, and loop compensation in a tiny 10 mm x 12 mm package. The 1.85 mm profile and small footprint enables the use of this part where space is at a premium.

The EN5396QI utilizes a 3-pin VID output voltage selector that allows the designer to choose one of seven pre-defined output voltage levels; or an external voltage divider can be employed to set the output voltage.
