EN5366QI

Mounting Style : SMD/SMT
Packaging : Reel
Output Current : 6 A
Operating Temperature Range : - 40 C to + 85 C
Output Voltage : 0.8 V to 3.3 V
Output Power : 20 W
Input Voltage : 2.375 V to 5.5 V
Switching Frequency : 5 MHz
Package / Case : QFN-58


Features:

• Tiny Footprint
• Simple Layout, Easy Design
• Low Part Count
• Excellent Transient Response

Application

This product is an excellent choice for FPGA and ASIC power. The enable and POK pins allow for simple sequencing and fault monitoring.

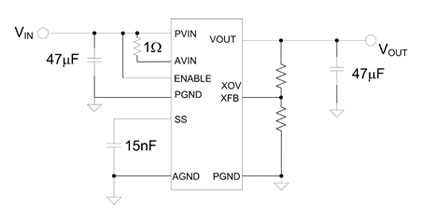

Pinout

Specifications

6 A continuous output current

2.375 V to 5.5 V input range

Excellent transient response, low ripple

Requires as few as three MLC capacitors

10 mm x 12 mm x 1.85 mm package

Description

The Enpirion EN5365QI (VID option) and the EN5366QI (External Divider option) 5 MHz buck converters with integrated inductor have the world's smallest foot print and lowest part count, simplifying design. The complete power system-on-a-chip (PowerSoC) includes controller, loop compensation, gate drive, power switches and inductor in a 10 mm x 12 mm x 1.85 mm QFN package.

EN5366QI Type III-compensated voltage mode control combined with the 5 MHz switching frequency yields excellent transient performance and stability over a wide operating range.
