EN5365QI

Mounting Style : SMD/SMT
Packaging : Reel
Output Current : 6 A
Operating Temperature Range : - 40 C to + 85 C
Output Voltage : 0.8 V to 3.3 V
Output Power : 20 W
Input Voltage : 2.375 V to 5.5 V
Switching Frequency : 5 MHz
Package / Case : QFN-58


Features:

Tiny Footprint

Simple Layout, Easy Design

Low Part Count

Excellent Transient Response

Application

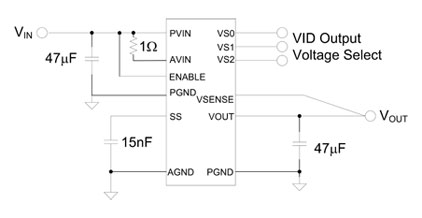

This product is an excellent choice for FPGA and ASIC power. The enable and POK pins allow for simple sequencing and fault monitoring


Pinout

Specifications

The Enpirion EN5365QI (VID) and the EN5366QI (External Divider) 5 MHz buck converters with integrated inductor have the world's smallest foot print and lowest part count, simplifying design. The complete power system-on-a chip (PowerSoC) includes controller, loop compensation, gate drive, power switches and inductor in a 10 mm x 12 mm x 1.85 mm QFN package.

Type III-compensated voltage mode control combined with the 5 MHz switching frequency yields excellent transient performance and stability over a wide operating range.

The EN5365QI version utilizes a 3-pin VID output voltage selector that allows the designer to choose one of seven pre-defined output voltage levels. The EN5366QI uses an external voltage divider to set output voltage in the range of 0.8 V to 3.3 V.

Description

The Enpirion EN5365QI (VID) and the EN5366QI (External Divider) 5 MHz buck converters with integrated inductor have the world's smallest foot print and lowest part count, simplifying design. The complete power system-on-a chip (PowerSoC) includes controller, loop compensation, gate drive, power switches and inductor in a 10 mm x 12 mm x 1.85 mm QFN package.
