EN5364QI

Operating Temperature Range :
Mounting Style : SMD/SMT
Packaging : Reel
Output Current : 6 A
Switching Frequency : 4 MHz
Output Voltage : 0.6 V
Output Power : 20 W
Input Voltage : 2.375 V to 6.6 V
Package / Case : QFN-68


Features:

Tiny Footprint Setting a New Standard For Power Density

Simple Layout, Easy Design

Low Part Count

Excellent Transient Response

Monotonic output voltage ramp during start-up with pre-bias loads

Master/Slave configuration for paralleling up to four EN5364QIs for greater power output

Precision Enable pin for accurate sequencing of power converters

Power OK signal

Programmable phase delay for lower input and output voltage ripple

8 mm x 11 mm x 1.85 mm QFN package

Fully RoHS compliant and Pb-free manufacturing line compatible

Application

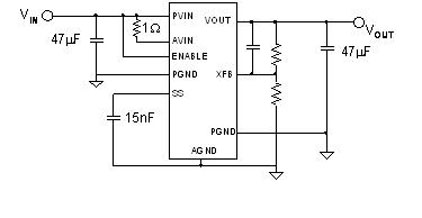

The EN5364QI utilizes an external resistor divider to set the output voltage to any user defined value. In addition, the EN5364QI is pin compatible with the Enpirion 9A EN5394QI, therefore if your power requirements should increase, the transition to the higher power EN5394QI will be seamless


Pinout

Specifications

Outstanding Power Density

2.375V to 5.5V input range

93% Peak efficiency

Output voltage margining

4MHz operating frequency with the ability to synchronize to an external system clock or other EN5364QIs

Description

The Enpirion EN5364QI represents a revolution in low-power switching converters. The total solution footprint is 160mm2, without compromising efficiency. It has a feature rich set to facilitate ease of use in systems that are sensitive to beat tones. Requiring as few as seven external components, the EN5364QI makes regulator design a breeze.

A complete power system-on-a chip (PowerSoC), the EN5364QI integrates power switches, Inductor, gate drive, controller, and loop compensation in a tiny 8 mm x 11 mm package. The 1.85 mm profile and small footprint enables the use of this part where space is at a premium.
