EN5322QI

Output Voltage :
Output Power :
Mounting Style : SMD/SMT
Packaging : Reel
Output Current : 2 A
Operating Temperature Range : - 40 C to + 85 C
Package / Case : QFN-24
Switching Frequency : 4 MHz
Input Voltage : 2.4 V to 5.5 V


Features:

Product Highlights

• Tiny Footprint
• Simple Layout, Easy Design
• Low Part Count
• Excellent Transient Respo

Application

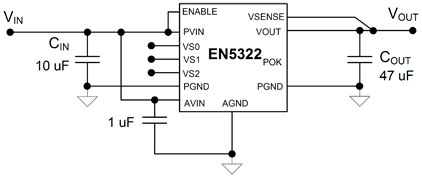

A complete power system-on-a-chip (PowerSoC), the EN5322QI integrates power switches, Inductor, gate drive, controller, and loop compensation in a tiny 6 mm x 4 mm package


Pinout

Specifications

Integrated Inductor

2A continuous output current

Total solution footprint as small as 58mm2

High efficiency up to 95%

Low Ripple Voltage; 8mVp-p Typical

Fast Transient Response

3-pin VID output voltage programming

2.4 V to 5.5 V input range

4 mm x 6 mm x 1.1 mm QFN package

Fully RoHS compliant and Pb-free manufacturing line compatible

Description

The Enpirion EN5322QI represents a revolution in low-power switching converters. The total solution footprint is 58mm2, without compromising efficiency. Requiring just a few external components, the EN5322QI makes regulator design a breeze
