EN29LV641L

Features: • Single power supply operation - Full voltage range: 2.7 to 3.6 volts for read, erase and program operations • Low power consumption (typical values at 5 MHz) - 9 mA typical active read current - 20 mA typical program/erase current - Less than 1 µA current in sta...

product image

EN29LV641L Picture
See larger image
SeekIC No. : 004336591 Detail

EN29LV641L: Features: • Single power supply operation - Full voltage range: 2.7 to 3.6 volts for read, erase and program operations • Low power consumption (typical values at 5 MHz) - 9 mA typic...

EN29LV641L Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EN29LV641L
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•  Single power supply operation
    -  Full voltage range: 2.7 to 3.6 volts for read,
       erase and program operations

•   Low power consumption (typical values at 5
     MHz)
     -  9 mA typical active read current
     -  20 mA typical program/erase current
     -  Less than 1 µA current in standby or automatic
        sleep mode.

•  JEDEC standards compatible
    -  Pinout and software compatible with single-
       power supply Flash standard

• Manufactured on 0.18m process
   technology

• Flexible Sector Architecture:
   -  One hundred and twenty-eight 32K-Word
       sectors.

• Minimum 100K program/erase endurance
   cycles.
• High performance for program and erase
   -  Word program time:  8µs typical
   -  Sector Erase time: 500ms typical
   -  Chip Erase time: 64s typical
• Package Options
   -  48-pin TSOP
   -  63 ball 11mm x 12mm FBGA



Pinout

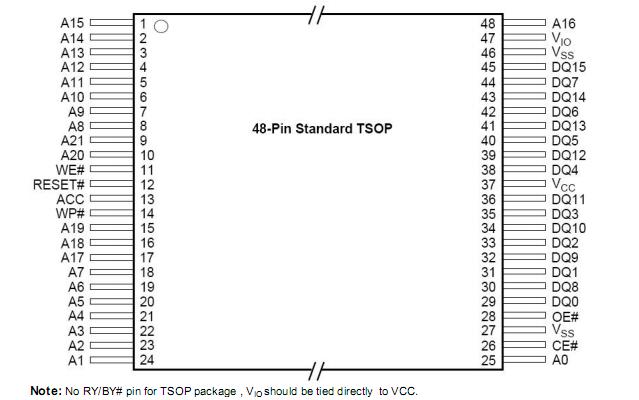

Connection Diagram


Description

The EN29LV641H/L / EN29LV640U is a 64-Megabit (4,194,304x16), electrically erasable, read/write non-volatile flash memory. Any word can be programmed typically in 8µs. This device is entirely  command set compatible with the JEDEC single-power-supply Flash standard.

The EN29LV641H/L / EN29LV640U is designed to allow either single Sector or full Chip erase operation, where each Sector Group can be protected against program/erase operations or temporarily unprotected to erase or program.  The device can sustain a minimum of 100K program/erase cycles on each Sector.
