EN27C512

Features: · Fast Read Access Time: -45, -55, -70, and -90ns· Single 5V Power Supply· Programming Voltage +12.75V· QuikRiteTM Programming Algorithm· Typical programming time 20ms· Low Power CMOS Operation· 1mA Standby (Typical)· 30mA Operation (Max.)· CMOS- and TTL-Compatible I/O· High-Reliability ...

product image

EN27C512 Picture
See larger image
SeekIC No. : 004336568 Detail

EN27C512: Features: · Fast Read Access Time: -45, -55, -70, and -90ns· Single 5V Power Supply· Programming Voltage +12.75V· QuikRiteTM Programming Algorithm· Typical programming time 20ms· Low Power CMOS Oper...

EN27C512 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EN27C512
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·  Fast Read Access Time:
    -45, -55, -70, and -90ns
·  Single 5V Power Supply
·  Programming Voltage +12.75V
·  QuikRiteTM Programming Algorithm
·  Typical programming time 20ms
·  Low Power CMOS Operation
·  1mA Standby (Typical)
·  30mA Operation (Max.)
·  CMOS- and TTL-Compatible I/O
·  High-Reliability CMOS Technology
·  Latch-Up Immunity to 100mA   from -1V to VCC + 1V
·  Two-Line Control (OE &CE)
·  Standard Product Identification Code
·  JEDEC Standard Pinout
    ·  28-pin PDIP
    ·  32-pin PLCC
    ·  28-pin TSOP (Type 1)
·  Commercial and Industrial Temperature Ranges

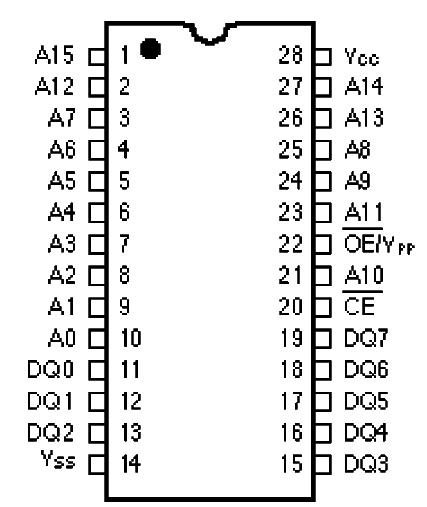

Pinout

Connection Diagram


Specifications

Storage Temperature                    -65 to +125
Ambient Temperature
with Power Applied                          -40 to +85
Voltage with Respect to VSS
All pins except A9, VPP, VCC   -0.6V to VCC + 0.5V
A9, VPP                                        -0.6V to +13.5V
VCC                                               -0.6V to +7.0V


Description

The EN27C512 is a low-power 512Kbit, 5V-only one-time-programmable (OTP) read-only memory (EPROM). Organized into 64K words with 8 bits per word, it features QuikRiteTM singleaddress location programming, typically at 20ms per byte. Any byte can be accessed in less than 45ns, eliminating the need for WAIT states in high-performance microprocessor systems. The EN27C512 has separate Output Enable (OE ) and Chip Enable (CE) controls which eliminate bus contention issues.
