Product Details

Description

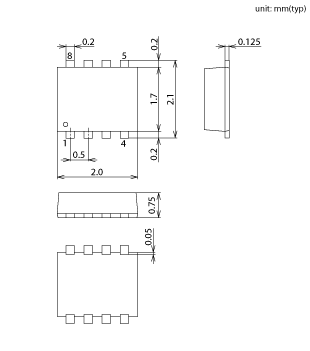

Pinout

Specifications

Absolute maximum ratings
VDSS [V]	20
VGSS [V]	10
ID [A]	6
PD [W]	1.5 When mounted on ceramic substrate (1200mm²×0.8mm)

Electrical characteristics
RDS(on) typ [Ω] VGS=4V	0.021
RDS(on) typ [Ω] VGS=2.5V ID [A]=1.5	0.027
RDS(on) typ [Ω] VGS=1.8V ID [A]=0.5	0.04
VGS(off) min [V]	0.4
VGS(off) max [V]	1.3
\|yfs\| typ [S]	9.2
Ciss typ [pF]	1060
Qg typ [nC]	13
f [kHz]	130
