Product Details

Description

Features:

* SOIC-8 package
* IC process
* Low profile
* LO Drive +13dBm to +17dBm

Pinout

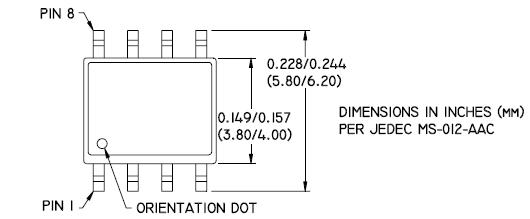

Connection Diagram

Specifications

Parameter	Absolute Maximum
RF Input Power	+27dBm
LO Drive Power	+27dBm
Operating/Storage Temp.	-40°C to +85°C

Description

M/A-COM's EMD40-1800H is a passive double balanced mixer in a low cost, surface mount SOIC-8 package. Fabricated using a mature silicon process (HMIC), it is ideally suited for high volume cellular and wireless applications. Typical applications include frequency up/down conversion, modulation and demodulation in JDC (1500MHz), DCS (1800mhz), PHS (1900MHz) and PCS (1900MHz).
