EMC6D103

` 3.3 Volt Operation (5 Volt Tolerant Input Buffers)
` SMBus 2.0 Compliant Interface (Fixed, not Discoverable) with Three Slave Address Options
` Fan Control
- PWM (Pulse width Modulation) Outputs (3)
- Fan Tachometer Inputs (4)
- Programmable automatic fan control based on temperature
- Backwards compatible with fans requiring lower frequency PWM drive
- High frequency fan support for 4 wire fans
- One fan can be controlled from as many as 3 temperature zones
- Fan ramp rate control for acoustic noise reduction
` Power Savings Modes
- Two monitoring modes: continuous or cycling (for power savings)
- Two low power modes when monitoring if off: Sleep and Shutdown
` Temperature Monitor
- Monitoring of Two Remote Thermal Diodes (+/- 3 deg C accuracy)
- Internal Ambient Temperature Measurement
- Limit Comparison of all Monitored Values
- Interrupt Pin for out-of-limit Temperature Indication
` Voltage Monitor
- Monitor Power supplies (+2.5V, +5V, +12V, Vccp, and VCC)
- Limit Comparison of all Monitored Values
- Interrupt Pin for out-of-limit Voltage Indication
` 5 VID (Voltage Identification) Inputs
` XOR Tree Test Mode

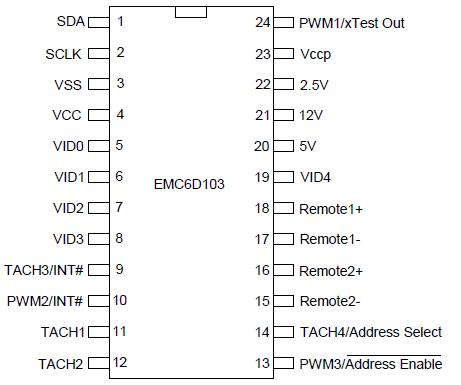

` 24-Pin SSOP Package; green, lead-free package also available.

The EMC6D103 is an environmental monitoring device with automatic fan control capability. This ACPI compliant device provides hardware monitoring for up to five voltages and three thermal zones, measures the speed of up to four fans, and controls the speed of multiple DC fans using Pulse Width Modulator (PWM) outputs. High frequency and low frequency PWMs are supported.

The EMC6D103 hardware monitor provides analog inputs for monitoring external voltages of +2.5V, +5V, +12V and Vccp. This device has the capability to monitor its own internal VCC power supply, which may be connected to either main power (VCC) or the suspend power well (VTR). In addition to monitoring the processor voltage, VID inputs are available to identify the voltage specification. External components are not required for voltage scaling or similar treatment.

The EMC6D103 hardware monitor includes support for monitoring three thermal zones: two external and one internal. The external temperatures are measured via thermal diode inputs capable of monitoring remote devices. In addition, they are equipped with an ambient temperature sensor for measuring the internal temperature.

EMC6D103 Pulse Width Modulators (PWM) control the speed of the fans by varying the output duty cycle of the PWM. Each PWM can be associated with any or all of the thermal zones monitored. As the temperature of the associated zone varies, the PWM duty cycle is adjusted accordingly. The Ramp Rate Control feature controls the rate of change of the PWM output, thereby reducing system noise created by changing the fan speed. The speed of each fan is monitored by a Fan Tachometer input. The measured values are compared to values stored in Limit Registers to detect if a fan has stalled or seized.

Fan speed may be under host software control or automatic. In host control mode, the EMC6D103 host software continuously monitors temperature and fan speed registers, makes decisions as to desired fan speed and sets the PWM's to drive the required fan speed. This device offers an interrupt output signal (INT#), which may be used to interrupt the host on out-of-limit temperature or voltage condition enabling an ACPI response as opposed to the host software continuously monitoring status. In auto  zone" mode, the logic continuously monitors the temperature and fan speeds and adjusts speeds without intervention from the host CPU. Fan speed is adjusted according to an algorithm using the temperature measured in the selected zone, the high and low limits set by the user, and the current fan speed.

The EMC6D103 supports two Monitoring modes: Continuous Mode and Cycle Mode. In the continuous monitoring mode, the sampling and conversion process is performed continuously for each voltage and temperature reading after monitoring is enabled. The time for each voltage and temperature reading varies depending on the measurement option. In cycle monitoring mode, the part completes all sampling and conversions, then waits approximately one second to repeat the process. It repeats the sampling and conversion process typically every 1.2 seconds (1.4 sec max - default averaging enabled). The sampling and conversion of each voltage and temperature reading is performed once every monitoring cycle. (This is a power saving mode.)

The EMC6D103 can be placed in one of two low-power modes: Sleep mode or Shutdown mode. These modes do not reset any of the registers of the device. In Sleep mode bias currents are on and the internal oscillator is on, but the the A/D converter and monitoring cycle are turned off. Serial bus communication is still possible with any register in the Hardware Monitor Block while in this low-power mode. In Shutdown mode the bias currents are off, the internal oscillator is off, and the the A/D converter and monitoring cycle are turned off. Serial communication is only possible with a select register.
