Product Details

Description



Features:

` Resistance Error Correction
` Ideality Factor Configuration
` Reports Hotter of Two Zones with dual-core CPU
` Accepts 2200pF cap for noise suppression
` 2 Remote Thermal Zones
- ±1°C Accuracy (40°C to 80°C)
- 0.125°C resolution
` Internal Thermal Zone
- ±3°C Accuracy (0°C to 85°C)
- 0.125°C resolution
` Low Power; 3.0V to 3.6V Supply
` Programmable Conversion Rate
` SMBus 2.0 Compliant


Application

· Desktop and Notebook Computers
· Hardware Management

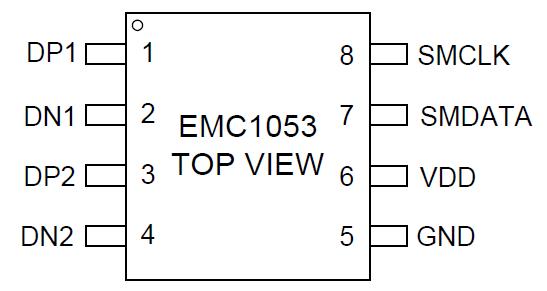

Pinout

Connection Diagram


Specifications

DESCRIPTION
RATING
UNIT
Supply Voltage VDD
-0.3 to 5.0
V
Voltage on SMDATA and SMCLK pins
-0.3 to 5.5
V
Voltage on any other pin
-0.3 to VDD+0.3
V
Operating Temperature Range
0 to 85
°C
Storage Temperature Range
-55 to 150
°C
Lead Temperature Range
Refer to JEDEC
Spec. J-STD-020
Package Thermal Characteristics for MSOP-8
Power Dissipation
TBD
Thermal Resistance (at 0 air flow)
135.9
°C/W
ESD Rating, All Pins Human Body Model
2000
V



Description

The EMC1053 is a System Management Bus (SMBus) temperature sensor that monitors up to three temperature zones, two remote and one local, for PC and embedded environments. The EMC1053 extended features include resistance error correction and ideality factor configuration to eliminate major sources of temperature measurement error.1 Monitoring both diodes of a dual-core CPU is simplified with the Hotter of Two Zones feature.

The external and internal measurement ranges support two data ranges (and formats), -64°C to +127°C and -64°C to +191°C.

Selectable conversion rates and standby mode support low-power operation.
