Features:

` Designed to support 45nm, 65nm, and 90nm CPU diodes
` Supports diodes requiring the BJT or transistor model
` Resistance Error Correction (up to 100 Ohms)
` Up to six External Temperature Monitors
- ±1°C Accuracy (60°C < TDIODE < 100°C)
- 0.125°C Resolution
- Supports up to 2.2nF filter capacitor
- Anti-parallel diodes for extra diode support and
  compact design
` Internal Temperature Monitor
- ±2°C accuracy
` 3.3V Supply Voltage
` Available in a 10 pin TSSOP lead-free RoHS
  Compliant package


Application

·  Notebook Computers
·  Desktop Computers
·  Industrial
·  Embedded Applications


Pinout

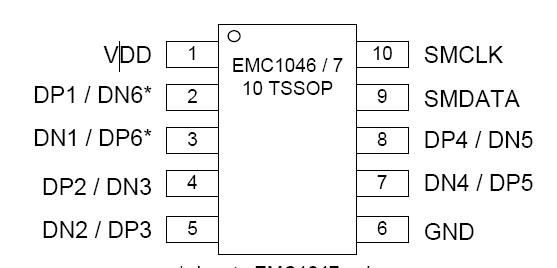

Connection Diagram


Specifications

Supply Voltage (VDD) ................................................-0.3 to 4.0 V
Voltage on 5V Tolerant pins...................................... -0.3 to 5.5 V
Voltage on any other pin to Ground............... -0.3 to VDD +0.3 V
Operating Temperature Range............................. -40 to +125 °C
Storage Temperature Range ...............................-55 to +150 °C
Lead Temperature Range......... Refer to JEDEC Spec. J-STD- 020
Package Thermal Characteristics for MSOP-10
Thermal Resistance (j-a)........................................ 132.2 °C/W
ESD Rating, All pins HBM .................................................2000 V
Note: Stresses at or above those listed could cause permanent damage to the device. This is a stress
rating only and functional operation of the device at any other condition above those indicated
in the operation sections of this specification is not implied. When powering this device from
laboratory or system power supplies, it is important that the Absolute Maximum Ratings not be
exceeded or device failure can result. Some power supplies exhibit voltage spikes on their
outputs when the AC power is switched on or off. In addition, voltage transients on the AC
power line may appear on the DC output. If this possibility exists, it is suggested that a clamp
circuit be used.


Description

The EMC1046/EMC1047 are high accuracy, low cost, System Management Bus (SMBus) temperature sensors. Advanced features such as Resistance Error Correction (REC), Beta Compensation (to CPU diodes requiring the BJT or transistor model) and automatic diode type detection combine to provide a robust solution for complex environmental monitoring applications.

Each device EMC1046/EMC1047 provides ±1° accuracy for external diode temperatures and ±2°C accuracy for the internal diode temperature. The EMC1046/EMC1047 monitors up to seven temperature channels (up to six external and one internal).
