EMC1043

Features: `􀂄 Supports two External Temperature Diodes- ±1°C Accuracy (40°C to 80°C)- 0.125°C Resolution- Ideality Factor Configuration- Accepts 2200pF Cap Across External Diodes for Noise Suppression- Optional Resistive Error Correction on External Diode 2- Resistive Error Correction (up ...

product image

EMC1043 Picture
SeekIC No. : 004336173 Detail

EMC1043: Features: `􀂄 Supports two External Temperature Diodes- ±1°C Accuracy (40°C to 80°C)- 0.125°C Resolution- Ideality Factor Configuration- Accepts 2200pF Cap Across External Diodes for Noise S...

floor Price/Ceiling Price

Part Number:
EMC1043
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/11

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`􀂄 Supports two External Temperature Diodes
- ±1°C Accuracy (40°C to 80°C)
- 0.125°C Resolution
- Ideality Factor Configuration
- Accepts 2200pF Cap Across External Diodes for Noise Suppression
- Optional Resistive Error Correction on External Diode 2
- Resistive Error Correction (up to 100 Ohms)
- Beta Compensation
`􀂄 Internal Temperature Diode
- ±3°C Accuracy (0°C to 85°C)
- 0.125°C Resolution
`􀂄 Low Power Operation
- 4uA Standby Current
`􀂄 3.0V to 3.6V Supply
`􀂄 Programmable Conversion Rate
`􀂄 SMBus 2.0 Compliant
- Four SMBus Address Available
`􀂄 Reports Hotter of Two Diodes with Dual-core CPU



Application

·􀂄 Desktop and Notebook Computers
·􀂄 Hardware Management
·􀂄 Servers
·􀂄 Embedded Applications



Pinout

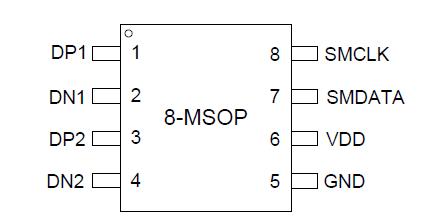

  Connection Diagram


Specifications

DESCRIPTION RATING UNIT
Supply Voltage VDD -0.3 to 5.0 V
Voltage on SMDATA and SMCLK pins -0.3 to 5.5 V
Voltage on any other pin -0.3 to VDD+0.3 V
Operating Temperature Range -40 to 125 °C
Storage Temperature Range -55 to 150 °C
Lead Temperature Range Refer to JEDEC
Spec. J-STD-020

Package Thermal Characteristics for MSOP-8
Thermal Resistance TJA(at 0 air flow) 135.9 °C/W
ESD Rating, All Pins Human Body Model 2000 V


Note: Stresses above those listed could cause damage to the device. This is a stress rating only and functional operation of the device at any other condition above those indicated in the operation sections of this specification is not implied. When powering this device from laboratory or system power supplies, it is important that the Absolute Maximum Ratings not be exceeded or device failure can result. Some power supplies exhibit voltage spikes on their outputs when the AC power is switched on or off. In addition, voltage transients on the AC power line may appear on the DC output. If this possibility exists, it is suggested that a clamp circuit be used.




Description

The EMC1043 is a family of System Management Bus (SMBus) temperature sensors that monitors three temperature zones, one internal diode and two externally connected diodes, for PC and embedded environments. The EMC1043 includes beta compensation circuitry to correct for variation in the beta of measurement transistors. Other extended features include resistance error correction and ideality factor configuration to eliminate major sources of temperature measurement error.1

An added feature to the EMC1043 is a function that automatically compares the two external temperature zones and reports the hotter of the two temperatures. Selectable conversion rates and standby mode support low-power operation. The temperature measurement ranges support two data ranges (and formats), -64°C to +127°C and -64°C to +191°C.
