EM9745P-442-G

MICROPHONE OMNI DIRECT 9.7X4.5MM

product image

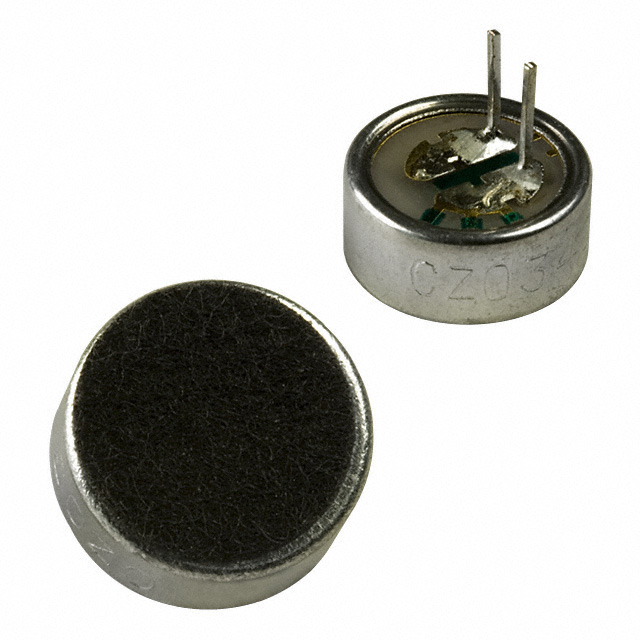

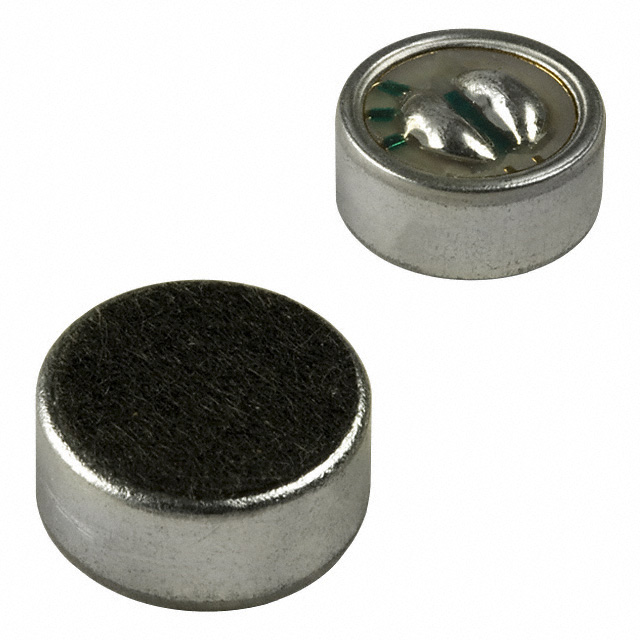

EM9745P-442-G Picture
See larger image
SeekIC No. : 002845643 Detail

EM9745P-442-G: MICROPHONE OMNI DIRECT 9.7X4.5MM

EM9745P-442-G Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EM9745P-442-G
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: - Manufacturer: Horn Industrial Co LTD
Type: Electret Condenser Output Type: Analog
Direction: Omnidirectional Operating Supply Voltage : 2.6 V to 3.6 V
Frequency Range: - Sensitivity: -44dB ±2dB
S/N Ratio: 60dB Impedance: 2.2 kOhm
Voltage - Rated: - Current - Supply: 450µA
Port Location: Top Seal Rating: None
Termination: Solder Pins/Posts Size / Dimension: 9.70mm Dia
Height (Max): 5.50mm Shape: Circular

Description

Series: -
Type: Electret Condenser
Output Type: Analog
Direction: Omnidirectional
Sensitivity: -44dB ±2dB
S/N Ratio: 60dB
Impedance: 2.2 kOhm
Port Location: Top
Seal Rating: None
Termination: Solder Pins/Posts
Size / Dimension: 9.70mm Dia
Shape: Circular
Packaging: Bulk
Frequency Range: -
Voltage - Rated: -
Manufacturer: Horn Industrial Co LTD
Current - Supply: 450µA
Height (Max): 5.50mm


Parameters:

Technical/Catalog InformationEM9745P-442-G
VendorHorn Industrial Co LTD
CategoryAudio Products
Sensitivity-44dB ±2dB
Voltage - Rated 4.5V
Current 450A
TypeElectret Condenser
Size / DimensionCircular - 9.7mm Dia x 4.5mm H
Frequency100Hz ~ 10kHz
S/N Ratio60dB
Filter Type-
Impedance2.2K Ohm
TerminationSolder Pins/Posts
DirectionOmnidirectional
Port LocationTop
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names EM9745P 442 G
EM9745P442G
359 1048 ND
3591048ND
359-1048
