EM92601A

Features: · Include oscillation circuit with external X-TAL (10.240 MHz).· Unlock detector.· 5KHz output for guard tone.· Standby mode for power saving.· 2.5 to 5.5V supply range.· Baseset/Handset changeable.· Available in 16 pin DIP or SOP.· SERIES Part NumberPackageChannel Selection EM92600APDIP...

product image

EM92601A Picture
SeekIC No. : 004336153 Detail

EM92601A: Features: · Include oscillation circuit with external X-TAL (10.240 MHz).· Unlock detector.· 5KHz output for guard tone.· Standby mode for power saving.· 2.5 to 5.5V supply range.· Baseset/Handset c...

floor Price/Ceiling Price

Part Number:
EM92601A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·  Include oscillation circuit with external X-TAL (10.240 MHz).
· Unlock detector.
· 5KHz output for guard tone.
· Standby mode for power saving.
· 2.5 to 5.5V supply range.
· Baseset/Handset changeable.
· Available in 16 pin DIP or SOP.
· SERIES
    Part NumberPackageChannel Selection
    EM92600APDIPparallel
    EM92600AMSOPparallel
    EM92601APDIPserial
    EM92601AMSOPserial



Pinout

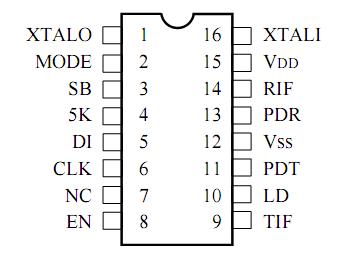

  Connection Diagram




Specifications

Symbol
Rating
Value
Unit
VDD
DC supply voltage
-0.5 to +6
V
VIN
Input voltage
-0.5 to VDD+0.5
V
IIN,IOUT
DC current drain per pin
10.0
mA
IDD,ISS
DC current drain VDD or VSS pins
30.0
mA
TA
Operating temperature range
-30 to +75
TSTG
Storage temperature range
-65 to +150



Description

The EM92600/1A series are developed for 46/49 MHz of 10 channels band frequency of cordless telephone which is used in U.S.A.. These devices are dual phase-locked loop frequency synthesizers contained ROM counters for receive and transmit loops with two independent phase detect circuits. A common reference oscillator and reference divider are share by the receive and transmit circuits.

Other features include a lock detect circuit for the transmit loop, illegal code default, a buffered oscillator output for mixing purposes in the system, 5KHz tone output . The EM92601A is designed for easy MPU interface. It provides the same features as the EM92600A , but accepts channel programming via a clocked, serial input instead of parallel BCD inputs. The EM92600A is selected channels via machanical switches of parallel BCD input.
