EM91865

Features: • Volume add Control Function.• One key Redial Function.• Flash key is available and have multiple Flash time ( 600 ms, 300 ms, 100 ms ) can be selected.• Auto Insert Pause Time.• Tone/Pulse Switchable.• Pulse mode fixed 10PPS.• Pulse to tone ( P...

product image

EM91865 Picture
See larger image
SeekIC No. : 004336147 Detail

EM91865: Features: • Volume add Control Function.• One key Redial Function.• Flash key is available and have multiple Flash time ( 600 ms, 300 ms, 100 ms ) can be selected.• Auto Inse...

EM91865 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EM91865
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Volume add Control Function.
• One key Redial Function.
• Flash key is available and have multiple Flash time ( 600 ms, 300 ms, 100 ms ) can be selected.
• Auto Insert Pause Time.
• Tone/Pulse Switchable.
• Pulse mode fixed 10PPS.
• Pulse to tone ( P®T ) key is provided for PABX operation.
• Many options can be selected by R option.
   Mode ( Pulse, Tone )
   M/B ratio ( 40:60 ; 33:66 )
   Auto insert pause time ( enable ; disable )
• 13 sets 16 digits one touch memory, or 3 set one touch and ten set two touch 16 digits memory.
• One set 32 digits SAVE function.
• One set 32 digits LNB redial function.
• Mixed and cascaded dialing.
• Hold and Mute function.
• Hand Free dialing.
• Tone duration and inter -tone pause are fixed at 90 ms.
• Flash pause time are fixed at 600 ms.
• Pulse to Tone pause time are fixed at 3.6sec.
• Uses 3.579545 MHz crystal or ceramic resonator (with built-in capacitor, no need extra capacitor).
• Package in DIP 18 or DIP 16.


Pinout

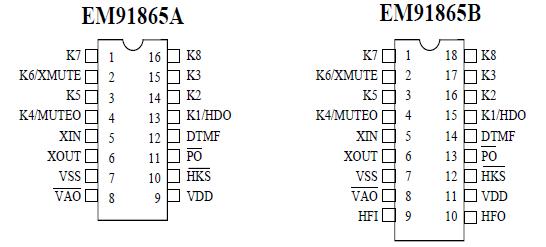

Connection Diagram


Specifications

Items
Sym.
Ratings
Unit
Power supply voltage
VDD
6.0
V
Input voltage range
VIN
VSS-0.3V ~ VDD+0.3V
V
Operating temperature
TOPR
0~ +70
°C
Storage temperature
TSTO
-55 ~ 150
°C
Power consumption
TD
500
mW



Description

The EM91865 are 13 memory tone/pulse switchable dialer with Last Number Redail (LNB) anD SAVE function, Which are fabricate in CMOS technology with wide operating voltage for both tone and pulse mode. EM91865 consumes very low memory retention current in on hook state. The EM91865 provide necessary functions of telephone set for application in any environment, such as pulse dialing, tone (DTMF)dialing, handfree dialing. Beside this, hold, mute and redial function are provide for particular operation. In redial mode EM91865 can auto insert pause time for application in PABX system. EM91865 also have a special I/O pin - VAO can used tocontrol the receive volume amplify circuit.
