EM91710A

Features: • Tone/pulse switchable dialer.• One 32-digit last number redial memory.• Pulse to tone (P®T) is provided for PBX operation.• Flash key is available.• Minimum tone duration is 98ms or 83ms.• Minimum intertone pause is 98ms or 83ms.• Uses 3.57...

product image

EM91710A Picture
See larger image
SeekIC No. : 004336142 Detail

EM91710A: Features: • Tone/pulse switchable dialer.• One 32-digit last number redial memory.• Pulse to tone (P®T) is provided for PBX operation.• Flash key is available.• Min...

EM91710A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EM91710A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Tone/pulse switchable dialer.
• One 32-digit last number redial memory.
• Pulse to tone (P®T) is provided for PBX operation.
• Flash key is available.
• Minimum tone duration is 98ms or 83ms.
• Minimum intertone pause is 98ms or 83ms.
• Uses 3.579545 MHz crystal or ceramic resonator.
• Many options can be selected.
   Mode (10 PPS ; 20 PPS ; Tone)
   M/B ratio (40 : 60 ; 33 : 66)
   Pause time (3.6s)
• Flash function (RESET)
   P®T pause time (3.6s)
   Flash time (600ms; 300ms; 100ms; or 80ms).
• Mixed dialing.
• Handfree function is provided for speaker phone application.
• Power on reset circuit is provided.
• Package in DIP18 or DIP16.

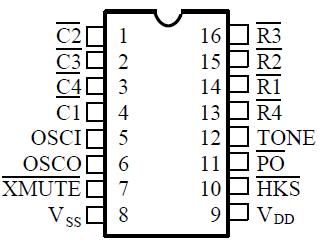

Pinout

Connection Diagram


Specifications

Items
Sym.
Ratings
Unit
Power supply voltage
VDD
6.0 Vdc
V
Input voltage range
VIN
VSS-0.3V ~ VDD+0.3V
V
Operating temperature
TOPR
0~ +50
°C
Storage temperature
TSTO
-55 ~ 125
°C
Power consumption
TD
500
mW



Description

The EM91710A/B are Tone/Pulse switchable dialer which are fabricated in CMOS technology with wide operating voltage for both tone and pulse mode, and consumes very low memory retention current in ON-HOOK state.
