EM91450

Features: ·I.P.P. detect function prevents the illegal connect external phone.·SDO function supports LCD driver and voice synthesizer to indicate dialing numbers and function operat- ing icons.·Lock function provides conventionality key lock and password lock operations.·Ring detector is designed ...

product image

EM91450 Picture
SeekIC No. : 004336139 Detail

EM91450: Features: ·I.P.P. detect function prevents the illegal connect external phone.·SDO function supports LCD driver and voice synthesizer to indicate dialing numbers and function operat- ing icons.·Lock...

floor Price/Ceiling Price

Part Number:
EM91450
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·I.P.P. detect function prevents the illegal connect external phone.
·SDO function supports LCD driver and voice synthesizer to indicate dialing numbers and function operat- ing  icons.
·Lock function provides conventionality key lock and password lock operations.
·Ring detector is designed to prevent illegal dialing from pocket dialer.
·Line hold function is designed for stopping conversation temporality.
·Tone/Pulse switchable.
· Wide operating voltage from 2.0 V to 5.5 V.
· Low operating current, 0.15 mA (Pulse) and 0.3 mA (Tone) typically.
·Adding resistor on keyboard scan pin that can select many telephone specifications, such as : Pulse rate, M/B ratio, Flash time, lock dialing functions.
·13 set one touch or (3 set one touch and 10 set two touch) repertory memory, each one can hold data up to 16 digits.
·A 32-digit LNB (last number) redial memory.
·Keytone function provides rapidly keying recognition.
·Handfree function provides on-hook dialing and speakerphone application.
·Pause and P-T time are fixed to 3.6 seconds.
·Tone duration and inter-tone pause time are fixed to 98 ms.
·Using 3.579545 MHz crystal or ceramic resonator.
·Package forms: PDIP, skinny.



Pinout

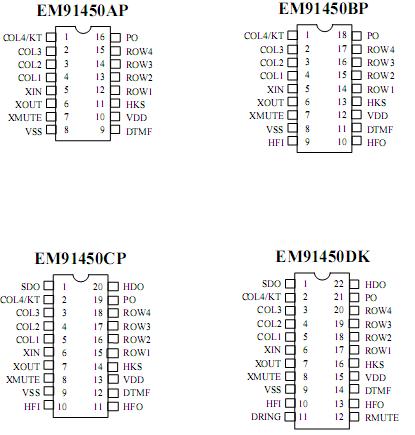

  Connection Diagram


Specifications

Items
Sym.
Rating
Unit
Power supply voltage
VDD
6.0 Vdc
V
Input voltage range
VIN
Vss-0.3V~VDD+0.3V
V
Operating temperature
TOPR
0~50
Storage temperature
TSTO
-55~125
Power consumption
PD
500
mW



Description

The EM91450 is a series of tone/pulse switchable dialers that is composed of T/P dialer. The EM91465 provide modern LCD driver's series data output port, which can display modern function operating icons. The EM91450 series provide necessary functions of telephone set for application in any environment, such as Pulse dialing, Tone (DTMF) dialing, Handfree dialing, keying tone ,and lock functions. The lock function is designed to inhibit toll dialing operation. Beside this, ring detector and SDO (Serial Data Output) functions are provided in advance version. Ring detector can prevent illegal dialing from pocket dialer. The SDO is designed to drive LCD driver and voice synthesizer. In this application, the dialing numbers and modern function operating icons can be displayed on LCD screen with LCD driver (EM32100 or EM32117 ). The EM91450 has a special I.P. P. detect function (Illegal Parallel Phone Detect) can prevent the illegal connect external Phone. The I.P.P. will detect the illegal user. When illegal user pickup phone, the function will alarm and send the alarm signal to the telephone line to interfer the illegal dialing.
