EM91403

Features: ·Tone/Pulse switchable.· Wide operating voltage from 2.0 V to 5.5 V.· Low operating current, 0.15 mA (Pulse) and 0.3 mA (Tone) typically.· Adding resistor on keyboard scan pin that can select many telephone specifications, such as : Pulse rate, M/B ratio, Flash time, lock dialing functio...

product image

EM91403 Picture
See larger image
SeekIC No. : 004336134 Detail

EM91403: Features: ·Tone/Pulse switchable.· Wide operating voltage from 2.0 V to 5.5 V.· Low operating current, 0.15 mA (Pulse) and 0.3 mA (Tone) typically.· Adding resistor on keyboard scan pin that can sel...

EM91403 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EM91403
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Tone/Pulse switchable.
· Wide operating voltage from 2.0 V to 5.5 V.
· Low operating current, 0.15 mA (Pulse) and 0.3 mA (Tone) typically.
· Adding resistor on keyboard scan pin that can select many telephone specifications, such as : Pulse rate, M/B ratio, Flash time, lock dialing functions.
· SDO function supports LCD driver and voice synthesizer to indicate dialing numbers.
· Line hold function is designed for stopping conversation temporality.
· Melody generator provides music on hold function.
· Lock function provides conventionality key lock and password lock operations.
· Ring detector is designed to prevent illegal dialing from pocket dialer.
· 3-set one touch repertory memory, each one can hold data up to 16 digits.
· A 32-digit LNB (last number) redial memory.
· Keytone function provides rapidly keying recognition.
· Handfree function provides on-hook dialing and speakerphone application.
· Pause and P-T time are fixed to 3.6 seconds.
· Tone duration and inter-tone pause time are fixed to 98 ms.
· Using 3.579545 MHz crystal or ceramic resonator.
· Package forms: PDIP, skinny.


Pinout

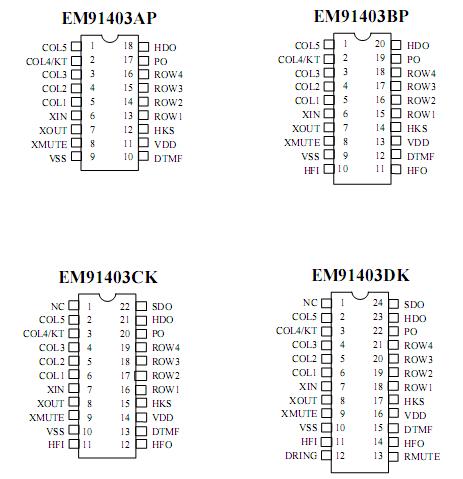

Connection Diagram


Description

The EM91403 is a series of tone/pulse switchable dialers that is composed of T/P dialer and T/P dialer with 3 sets memories. The EM91403 series provide necessary functions of telephone set for application in any environment, such as Pulse dialing, Tone (DTMF) dialing, Handfree dialing, keying tone ,and lock functions. The lock function is designed to inhibit toll dialing operation. Beside this, melody generator, ring detector and SDO (Serial Data Output) functions are provided in advance version. Melody generator will output dual-tone music in line hold duration. Ring detector can prevent illegal dialing from pocket dialer. The SDO is designed to drive LCD driver and voice synthesizer. In this application, the dialing numbers can be displayed on LCD screen with EM32100 ( or EM32116 ).
