EM85000

Features: • Two-button mouse and trackball controller.• Key Lock function is available.• Both photo discharge and non-discharge modes are available.• Discharge mode can reduce X,Y DC offset level.• Dynamic LEDs Control to reduce system power consumption.• Four s...

product image

EM85000 Picture
See larger image
SeekIC No. : 004336124 Detail

EM85000: Features: • Two-button mouse and trackball controller.• Key Lock function is available.• Both photo discharge and non-discharge modes are available.• Discharge mode can reduc...

EM85000 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EM85000
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Two-button mouse and trackball controller.
• Key Lock function is available.
• Both photo discharge and non-discharge modes are available.
• Discharge mode can reduce X,Y DC offset level.
• Dynamic LEDs Control to reduce system power consumption.
• Four stages sample rate at 1KHz,2.5KHz,5KHz,10KHz.
• Include Noise Immunity methodology to avoid false entry.
• Operating frequence at 3.58MHz.
• 18 Pin DIP.


Pinout

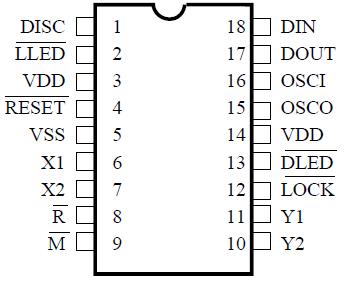

Connection Diagram


Specifications

Temperature under bias      0 to 70
Storage temperature     -65 to 150
Input voltage                -0.3V to +6.0V
Output voltage              -0.3V to +6.0V


Description

The EMC ADB Mouse Controller is a mouse controller for apple mouse system.

The following functions are supported:
• Controller receives command or data from Host.
• Controller transmits data to Host.
