EM84530

Features: • Include PnP software scrolling function• Using 50kW ±1% resistor for RC oscillation.• Compatible with legacy PS/2 mouse.• Compatible with Microsoft serial mouse.• Compatible with Microsoft PS/2 mouse.• Serial or PS/2 port auto-detect.• 100 byte...

product image

EM84530 Picture
See larger image
SeekIC No. : 004336119 Detail

EM84530: Features: • Include PnP software scrolling function• Using 50kW ±1% resistor for RC oscillation.• Compatible with legacy PS/2 mouse.• Compatible with Microsoft serial mouse.&...

EM84530 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EM84530
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Include PnP software scrolling function
• Using 50kW ±1% resistor for RC oscillation.
• Compatible with legacy PS/2 mouse.
• Compatible with Microsoft serial mouse.
• Compatible with Microsoft PS/2 mouse.
• Serial or PS/2 port auto-detect.
• 100 bytes PnP ID code could be filled by code layer.
• Built-in noise immunity circuit.
• The sampiling rate of motion detector is up to 65KHz.
• Built-in three zener diodes : one in VDD to VSS, two in RTS to VDD.
• CMOS push-pull RXD output.
• Built-in current comparator for photo-couples input.
• Built-in three step dynamic input impedance.
• Three key-switches and four photo-couples inputs.
• RTS debouncing circuit included.
• Photo couple test mode included.
• Low power dissipation.


Application

• Serial PnP mouse.
• PS/2 mouse.
• Combo mouse.

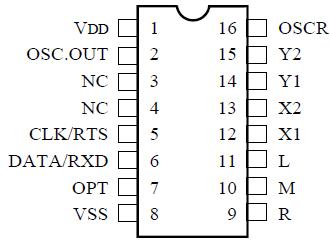

Pinout

Connection Diagram


Specifications

Parameter
Ratings
Unit
Min.
Max.
Temperature under bias
0
70
°C
Storage temperature range
-65
150
°C
Supply voltage
-0.3
7.5
V
Power dissipation
-
500
mW



Description

The EM84530 Mouse Controller is specially designed to control serial mouse or PS/2 mouse device. This single chip can interface three key-switches and 4 X-Y photo-couples directly to RS-232C or 8042 controller.
