EM83053A

Features: • Low cost - eliminate need external components.• Phantom key detects.• RC oscillator ( 1.8432MHz ).• Support scan code set 1 ,2 and 3.• Support PC AT and PS/2 keyboard .• Low power CMOS device technology.• Internal pull-up resistor.• Tri-s...

product image

EM83053A Picture
See larger image
SeekIC No. : 004336109 Detail

EM83053A: Features: • Low cost - eliminate need external components.• Phantom key detects.• RC oscillator ( 1.8432MHz ).• Support scan code set 1 ,2 and 3.• Support PC AT and PS/...

EM83053A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EM83053A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low cost - eliminate need external components.
• Phantom key detects.
• RC oscillator ( 1.8432MHz ).
• Support scan code set 1 ,2 and 3.
• Support PC AT and PS/2 keyboard .
• Low power CMOS device technology.
• Internal pull-up resistor.
• Tri-state outputs for easy board application.
• Built-in 4K ROM.
• Support WINDOWSTM 95, 98, 2000 keys.
• 104/107 keys with multi-media or other special application keyboard encoder.
• WINDOWS is registered trademarks of Microsoft corperation.


Application

• IBM PC AT or compatible machine keyboard.
• IBM PS/2 model 30,50,60,80 or compatible machine keyboard.
• Japanese keyboard.
• Korean keyboard.
• Brazilian keyboard.
• European keyboard.

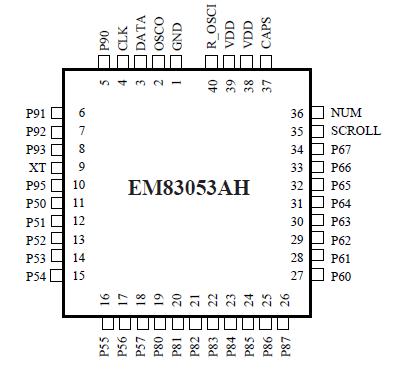

Pinout

Connection Diagram


Specifications

Parameter
Sym.
Ratings
Supply Voltage

VCC

 -0.5V to +7V
Input Voltage VIN -0.3V to +6V
Output Voltage VOUT -0.3V to +6V
Temperature under bias TB 0 to 70
Storage temperature TS -65 to 150



Description

The EM83053A/BH microcontroller is dedicated to a keyboard encoder ,specially designed for IBM PC AT and all compatible machines. The EM83053A/BH controll all scan codes, three LEDs status, scan timing and communications between the keyboard and PC. It is easy to implement a high performance, low cost keyboard with the minimal external components.
