EM83050H

Features: • Low cost - eliminate need external components.• Phantom key detects.• RC oscillator ( 1.8432MHz ).• Support scan code set 1 ,2 and 3.• Support PC XT/AT and PS/2 keyboard .• Low power CMOS device technology.• Internal pull-up resistor.• Tr...

product image

EM83050H Picture
See larger image
SeekIC No. : 004336108 Detail

EM83050H: Features: • Low cost - eliminate need external components.• Phantom key detects.• RC oscillator ( 1.8432MHz ).• Support scan code set 1 ,2 and 3.• Support PC XT/AT and ...

EM83050H Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EM83050H
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low cost - eliminate need external components.
• Phantom key detects.
• RC oscillator ( 1.8432MHz ).
• Support scan code set 1 ,2 and 3.
• Support PC XT/AT and PS/2 keyboard .
• Low power CMOS device technology.
• Internal pull-up resistor.
• Tri-state outputs for easy board application.
• Built-in 4K ROM.
• Support WINDOWSTM 95, 98 keys.
• 101/104/107 keys or other special application keyboard encoder.
• WINDOWS is registered trademarks of Microsoft corperation.


Application

• IBM PC XT/AT or compatible machine keyboard.
• IBM PS/2 model 30,50,60,80 or compatible machine keyboard.
• Japanese keyboard.
• Korean keyboard.
• Brazil keyboard.


Pinout

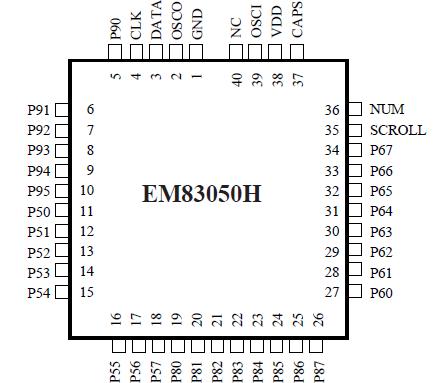

Connection Diagram


Specifications

Parameter
Sym.
Ratings
Supply Voltage VCC -0.5V to +7V
Input Voltage VIN -0.3V to +6V
Output Voltage VOUT -0.3V to +6V
Temperature under bias TB 0 to 70
Storage temperature TS -65 to 150



Description

The EM83050H microcontroller is dedicated to a keyboard encoder ,specially designed for IBM PC XT/AT and all compatible machines. The EM83050H controll all scan codes, three LEDs status, scan timing and communications between the keyboard and PC. It is easy to implement a high performance, low cost keyboard with the minimal external components.
