Features:

• Operation voltage : 2.4V to 3.6V.
• Clock source : Dual clock system. Low-frequency oscillator is Crystal or RC oscillator (32K Hz, connect an external resistor) by mask option and high-frequency oscillator is RC oscillator (connect an external resistor).
• Instruction set : 109 powerful instructions for 4K ROM / 107 powerful instructoins for 8K ROM.
• Instruction cycle time : Up to 2us for 4 MHz (high speed clock). 122 µs or 244µs by frequency double mask option for 32768 Hz (low speed clock).
• ROM capacity : 4096 X 8 bits / 8192 X 8 bits ROM are choosed by mask option.
• RAM capacity : 244 X 4 bits.
• Input port : 1 port (P0). P0(0..3) and IDLE releasing function are available by mask option.
• Bidirection port : 2 ports (P4, P8). P4.0 and SOUND is available by mask option. P4.1 is shared with HTC external input. P8(0..3) and IDLE releasing function are available by mask option.
• 12-bit timer/counter : Two 12-bit timer/counters are programmable for timer, event counter and pulse width measurement.
• High speed timer/counter : One 8-bit high speed timer/counters is programmable for auto load timer, melody output and pulse width measurement.
• Built-in time base counter : 22 stages.
• Subroutine nesting : Up to 13 levels.
• Interrupt : External . . . . . 2 input interrupt sources.
                   Internal . . . . . . 2 Timer overflow interrupts, 1 time base interrupt.
                                           1 high speed timer overflow interrupt.
• LCD driver : 32 X 4 dots, 1/4duty, 1/3duty, 1/2duty, static, 1/2 bias, 1/3 bias; 6 options selectable.
• Power saving function : SLOW, IDLE, STOP operation mode.
• Package type : Chip form 61 pins.
                          QFP 100 pins.
                          PDIP 42 pins.


Application

EM73P461A is suitable for application in family applicance, consumer products, hand held games and the toy controller.


Pinout

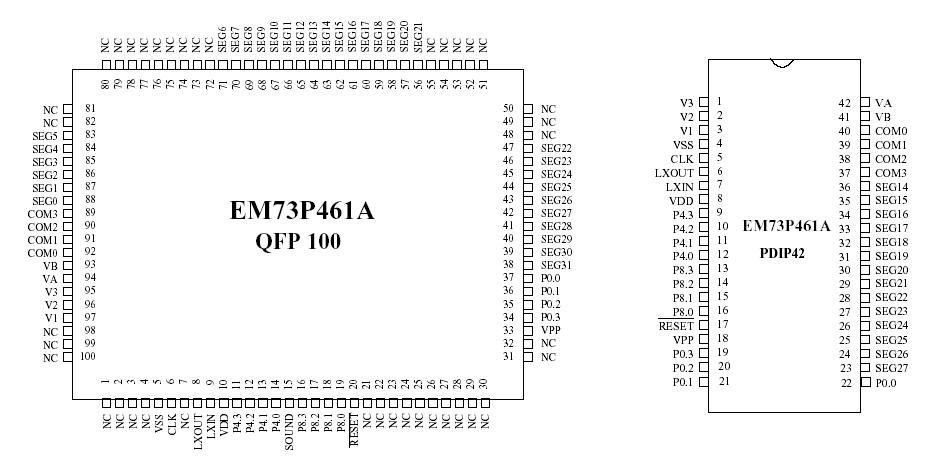

Connection Diagram


Specifications

Items
Sym.
Ratings
Conditions
Supply Voltage
VDD
-0.5V to 6V
Input Voltage
VIN
-0.5V to VDD +0.5V
Output Voltage
VO
-0.5V to VDD +0.5V
Power Dissipation
PD
300mW

TOPR =50
Operating Temperature
TOPR

0 to 50
Storage Temperature
TSTG

-55 to 125



Description

EM73P461A is an advanced single chip CMOS 4-bit one-time programming (OTP) micro-controller. It contains 4K/8K-byte ROM, 244-nibble RAM, 4-bit ALU, 13-level subroutine nesting, 22-stage time base, two 12-bit timer/ counters for the kernel function. EM73P461A also contains 6 interrupt sources, 1 input port, 2 bidirection ports, LCD display (32x4), and one high speed timer/counter with melody output.

EM73P461A has plentiful operating modes (SLOW, IDLE, STOP) intended to reduce the power consumption.
