EM73C63

Features: • Operation voltage : 2.4V to 5.5V.• Clock source : Dual clock system. Low-frequency oscillator is Crystal or RC oscillator (32KHz, connect a external resistor) by mask option and high-frequency oscillator is RC oscillator (connect a external resistor and a capacitor). Extern...

product image

EM73C63 Picture
See larger image
SeekIC No. : 004336045 Detail

EM73C63: Features: • Operation voltage : 2.4V to 5.5V.• Clock source : Dual clock system. Low-frequency oscillator is Crystal or RC oscillator (32KHz, connect a external resistor) by mask option ...

EM73C63 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EM73C63
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Operation voltage : 2.4V to 5.5V.
• Clock source : Dual clock system. Low-frequency oscillator is Crystal or RC oscillator (32KHz, connect a external resistor) by mask option and high-frequency oscillator is RC oscillator (connect a external resistor and a capacitor). External clock and internal clock is available by mask option.
• Oscillation frequency : 480K, 1M, 2M and 4M Hz are both available for high frequency clock by mask option.
• Instruction set : 107 powerful instructions.
• Instruction cycle time : Up to 2 µs for 4 MHz (high speed clock). 244 µs for 32768 Hz (low speed clock).
• ROM capacity : 32768 X 8 bits.
• RAM capacity : 500 X 4 bits.
• Input port : 1 port (P0.0-P0.3), IDEL/STOP releasing function is available by mask option.(each input pin has a pull-up and pull-down resistor available by mask option).
• Bidirection port : 2 ports (P4, P8). P4.0 and SOUND are available by mask option. IDEL/STOP releasing function for P8(0..3) is available by mask option.
• 12-bit timer/counter : Two 12-bit timer/counters are programmable for timer, event counter and pulse width measurement mode.
• Built-in time base counter : 22 stages.
• Subroutine nesting : Up to 13 levels.
• Interrupt : External . .. . . . 2 input interrupt sources.
                   Internal . . . . . . 2 Timer overflow interrupts.
                                            1 Time base interrupt.
• LCD driver : 40 X 16 dots, 1/16 duty, 1/5 bias with voltage multiplier.
• Sound effect : Tone generator, random generator and volume control.
• Power saving function: SLOW, IDLE, STOP operation modes.
• Package type : Chip form 84 pins, PLCC 84 pins.


Pinout

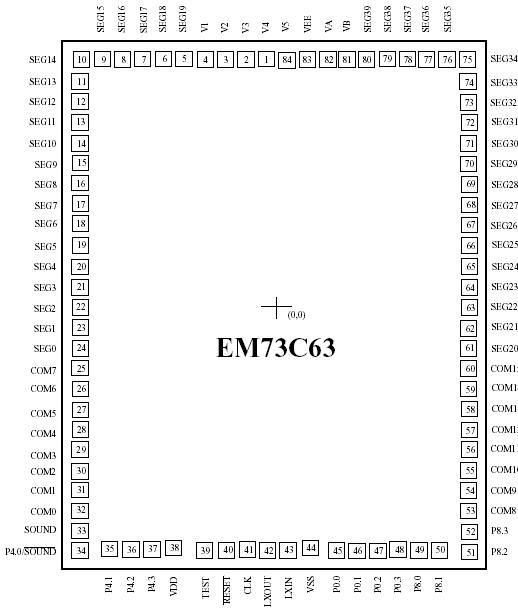

Connection Diagram


Specifications

Items
Sym.
Ratings
Conditions
Supply Voltage
VDD
-0.5V to 6V
Input Voltage
VIN
-0.5V to VDD +0.5V
Output Voltage
VO
-0.5V to VDD +0.5V
Power Dissipation
PD
300mW

TOPR =50
Operating Temperature
TOPR

0 to 50
Storage Temperature
TSTG

-55 to 125



Description

EM73C63 is an advanced single chip CMOS 4-bit micro-controller. It contains 32K-byte ROM, 500-nibble RAM, 4-bit ALU, 13-level subroutine nesting, 22-stage time base, two 12-bit timer/counters for the kernel function. EM73C63 is also equipped with 5 interrupt sources, 3 I/O ports (including 1 input port and 2 bidirection ports),LCDdisplay(40x16),built-insoundgenerator.

It's low power consumption and high speed feature are further strengten with DUAL, SLOW, IDLE and STOP operation mode for optimized power saving.
