EM73983

Features: • Operation voltage : 2.2V to 4.8V.• Clock source : Dual clock system. Low-frequency oscillator is Crystal or RC oscillator (32K Hz, connect a external resistor) by mask option and high-frequency oscillator is a built-in internal oscillator (4.6 MHz).• Instruction set :...

product image

EM73983 Picture
See larger image
SeekIC No. : 004336042 Detail

EM73983: Features: • Operation voltage : 2.2V to 4.8V.• Clock source : Dual clock system. Low-frequency oscillator is Crystal or RC oscillator (32K Hz, connect a external resistor) by mask option...

EM73983 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EM73983
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Operation voltage : 2.2V to 4.8V.
• Clock source : Dual clock system. Low-frequency oscillator is Crystal or RC oscillator (32K Hz, connect a external resistor) by mask option and high-frequency oscillator is a built-in internal oscillator (4.6 MHz).
• Instruction set : 107 powerful instructions.
• Instruction cycle time : 1.7µs for 4.6M Hz (high speed clock) . 244µs for 32768 Hz (low speed clock).
• ROM capacity : 16K x 8 bits.
• RAM capacity : 500 x 4 bits.
• Input port : 1 port (P0.0-P0.3), IDLE/STOP releasing function is available by mask option. (each input pin has a pull-up and pull-down resistor available by mask option).
• Bidrection port : 2 ports (P4, P8). IDLE/STOP release function for P8(0..3) is available by mask option.
• Built-in watch-dog-timer counter : It is available by mask option.
• 12-bit timer/counter : Two 12-bit timer/counters are programmable for timer, event counter and pulse width measurement mode.
• Built-in time base counter : 22 stages.
• Subroutine nesting : Up to 13 levels.
• Interrupt : External interrupt . . . . . . 2 input interrupt sources.
                   Internal interrupt . . . . . . 2 timer overflow interrupts, 1 time base interrupt.
                                                         1 speech interrupt.
• LCD driver : 40x8 dots,1 /8 duty, 1/5 bias with voltage multiplier.
• Sound effect : Tone generator and random generator.
• Speech synthesizer : 160K speech data ROM (use as 160K nibbles data ROM).
• Power saving function : SLOW, IDLE, STOP operation modes.
• Package type : Chip form 77 pins.

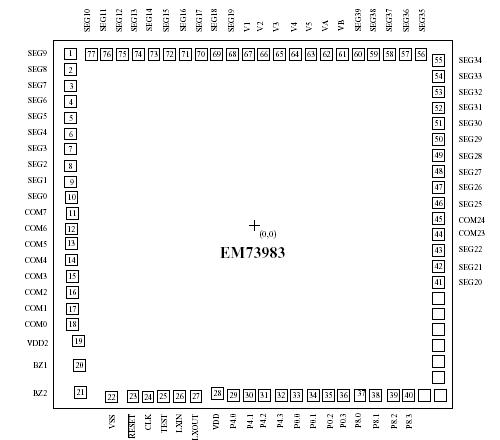

Pinout

Connection Diagram


Specifications

Items
Sym.
Ratings
Conditions
Supply Voltage
VDD
-0.5V to 6V
Input Voltage
VIN
-0.5V to VDD +0.5V
Output Voltage
VO
-0.5V to VDD +0.5V
Power Dissipation
PD
300mW

TOPR =50
Operating Temperature
TOPR

0 to 50
Storage Temperature
TSTG

-55 to 125



Description

EM73983 is an advanced single chip CMOS 4-bit micro-controller. It contains 16K-byte ROM, 500-nibble RAM, 4-bit ALU, 13-level subroutine nesting, 22-stage time base, two 12-bit timer/counters for the kernel function. EM73983 also equipped with 6 interrupt sources, 3 I/O ports (including 1 input port and 2 bidirection ports), LCD display (40x8), built-in sound generator and speech synthesizer.

EM73983 is low power consumption and high speedfeature are further strengten with DUAL, SLOW, IDLE and STOP operation mode for optimized power saving.
