EM73880

Features: • Operation voltage : 2.4V to 3.6V.• Clock source : Dual clock system. Low-frequency oscillator (32.768 KHz) could be Crystal or RC oscillator high-frequency oscillator is a built-in for 4.6 MHz.• Instruction set : 107 powerful instructions.• Instruction cycle tim...

product image

EM73880 Picture
See larger image
SeekIC No. : 004336039 Detail

EM73880: Features: • Operation voltage : 2.4V to 3.6V.• Clock source : Dual clock system. Low-frequency oscillator (32.768 KHz) could be Crystal or RC oscillator high-frequency oscillator is a bu...

EM73880 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EM73880
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Operation voltage : 2.4V to 3.6V.
• Clock source : Dual clock system. Low-frequency oscillator (32.768 KHz) could be Crystal or RC oscillator high-frequency oscillator is a built-in for 4.6 MHz.
• Instruction set : 107 powerful instructions.
• Instruction cycle time : 1.7us for 4.6 MHz (high speed clock). 244 µs for 32768 Hz (low speed clock).
• ROM capacity : 8192 X 8 bits.
• RAM capacity : 244 X 4 bits.
• Input port : 1 port (P0). P0(0..3) and IDLE releasing function are available by mask option.
• Bidirection port : 2 ports (P4, P8). P4.1 is shared with HTC external input. P8(0..3) and IDLE releasing function are available by mask option.
• 12-bit timer/counter : Two 12-bit timer/counters are programmable for timer, event counter and pulse width measurement.
• High speed timer/counter : One 8-bit high speed timer/counters is programmable for auto load timer, melody output and pulse width measurement.
• Speech synthesizer : 160K Speech ROM.
• Built-in time base counter : 22 stages.
• Subroutine nesting : Up to 13 levels.
• Interrupt : External . . . . . 1 input interrupt sources.
                   Internal . . . . . . 2 Timer overflow interrupts, 1 time base interrupt.
                                           1 high speed timer/counter overflow interrupt.
                                           1 Speech ending interrupt.
• LCD driver : 32 X 4 dots, 1/4,1/3,1/2, static 4 kinds of duty Type selectable, 1/2 bias, 1/3 bias, 2 kinds bias Type selectable.
• Power saving function : SLOW, IDLE, STOP operation mode.
• Package type : Chip form. . . . .63 pins.


Application

EM73880 is suitable for application in family applicance, consumer products, hand held games and the toy controller.




Pinout

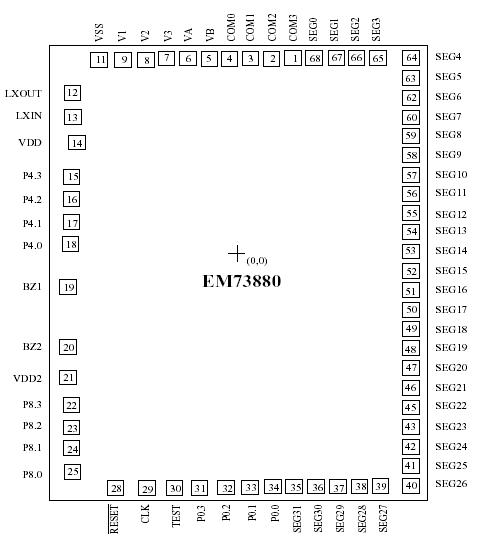

Connection Diagram


Description

EM73880 is an advanced single chip CMOS 4-bit micro-controller. It contains 8K-byte ROM, 244-nibble RAM, 4-bit ALU, 13-level subroutine nesting, 22-stage time base, two 12-bit timer/counters for the kernel function. EM73880 also contains 6 interrupt sources, 1 input port, 2 bidirection ports, LCD display (32x4), and one high speed timer/counter,sound generator, and speech synthesizer.

EM73880 has plentiful operating modes (SLOW, IDLE, STOP) intended to reduce the power consumption.
