Features: `Operation voltage:1.2V to 1.8V.
`Clock source:Dual clock system. Low-frequency oscillator is Crystal or RC oscillator (32K Hz, connect an external resistor) by mask option and high-frequency oscillator is RC oscillator (connect an external resistor).
`Instruction set:109 powerful instructions.
`Instruction cycle time:Up to 2us for 4 MHz (high speed clock). 122s or 244s by frequency double mask option for 32768 Hz (low speed clock)
`ROM capacity: 4096 X 8 bits.
`RAM capacity: 244 X 4 bits.
`Input port:1 port (P0). P0(0..3) and IDLE releasing function are available by mask option.
`Bidirection port:2 ports (P4, P8). P4.0 and SOUND is available by mask option. P4.1 is shared with HTC external input. P8(0..3) and IDLE releasing function are available by mask option.
`12-bit timer/counter:Two 12-bit timer/counters are programmable for timer, event counter and pulse width measurement.
`High speed timer/counter : One 8-bit high speed timer/counters is programmable for auto load timer, melody output and pulse width measurement.
`Built-in time base counter : 22 stages.
`Subroutine nesting:Up to 13 levels.
`Interrupt:External . . . . .2 input interrupt sources.
Internal . . . . . .2 Timer overflow interrupts, 1 time base interrupt.
1 high speed timer overflow interrupt.
`LCD driver:32 X 4 dots, 1/4, 1/3, 1/2 static six kinds of duty selectable, 1/2 bias, 1/3 bias.
?`Power saving function :SLOW, IDLE, STOP operation mode.
`Package type: Chip form61 pins.

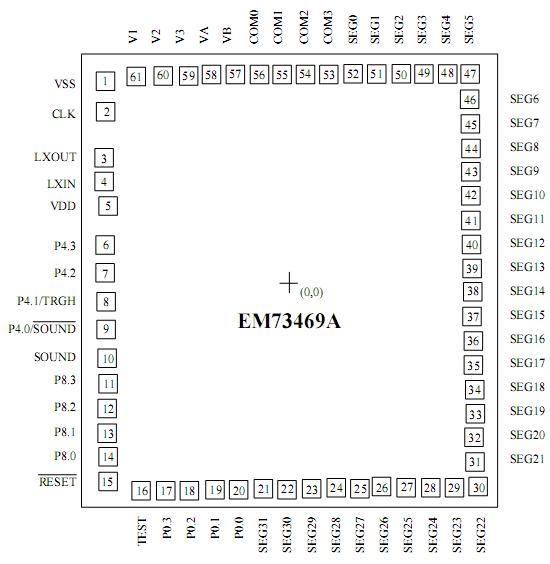

ApplicationEM73469A is suitable for application in family applicance, consumer products, hand held games and the toy controller.Pinout
Specifications
|
Items |
Sym. |
Ratings |
Conditions |
Supply Voltage
|
VDD |
-0.5V to 6V |
|
| Input Voltage |
VIN |
-0.5V to VDD +0.5V |
|
| Output Voltage |
VO |
-0.5V to VDD +0.5V
|
|
| Power Dissipation |
PD |
300mW |
TOPR =50
|
| Operating Temperature |
TOPR |
0 to 50
|
|
| Storage Temperature |
TSTG |
-55 to 125
|
|
DescriptionEM73469A is an advanced single chip CMOS 4-bit micro-controller. It contains 4K-byte ROM, 244-nibble RAM, 4-bit ALU, 13-level subroutine nesting, 22-stage time base, two 12-bit timer/counters for the kernel function. EM73469A also contains 6 interrupt sources, 1 input port, 2 bidirection ports, LCD display (32x4), and one high speed timer/counter with melody output.
EM73469A has plentiful operating modes (SLOW, IDLE, STOP) intended to reduce the power consumption.
EM73469A Data Sheet
