EM6605

Features: ` Low Power - typical 4.0A active mode - typical 2.5A standby mode - typical 0.3A sleep mode @ 1.8V, 32kHz, 25 °C` Low Voltage - 1.8 to 5.5V` RC oscillator 30 - 300kHz` buzzer - three tone` ROM - 2k ´ 16 (Mask Programmed)` RAM - 96 ´ 4 (User Read/Write)` 2 clocks per instruct...

product image

EM6605 Picture
See larger image
SeekIC No. : 004336008 Detail

EM6605: Features: ` Low Power - typical 4.0A active mode - typical 2.5A standby mode - typical 0.3A sleep mode @ 1.8V, 32kHz, 25 °C` Low Voltage - 1.8 to 5.5V` RC oscillator 30 - 300kHz` buzzer - three tone...

EM6605 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EM6605
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Low Power - typical 4.0A active mode
    - typical 2.5A standby mode
    - typical 0.3A sleep mode @ 1.8V, 32kHz, 25 °C
` Low Voltage - 1.8 to 5.5V
` RC oscillator 30 - 300kHz
` buzzer - three tone
` ROM - 2k ´ 16 (Mask Programmed)
` RAM - 96 ´ 4 (User Read/Write)
` 2 clocks per instruction cycle
` RISC architecture
` 4 software configurable 4-bit ports
` Up to 16 inputs (4 ports)
` Up to 12 outputs (3 ports)
` Serial (Output) Write buffer - SWB
` Voltage level detection
` Analogue watchdog
` Timer watchdog
` 8 bit timer / event counter
` Internal interrupt sources (timer, event counter, prescaler)
` External interrupt sources (portA + portC)


Application

· sensor interfaces
· domestic appliances
· security systems
· automotive controls
· TV & audio remote controls
· measurement equipment
· R/F and IR. control

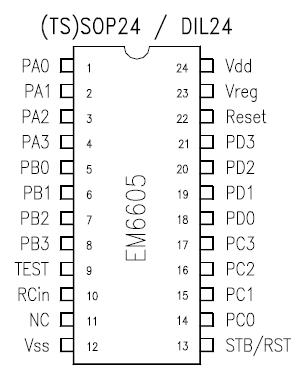

Pinout

Connection Diagram


Description

The EM66XX series is an advanced single chip low cost, mask programmed CMOS 4-bit microcontroller. It contains ROM, RAM, watchdog timer, oscillation detection circuit, combined timer / event counter, prescaler, voltage level detector and a number of clock functions. Its low voltage and low power operation make it the most suitable controller for battery, stand alone and mobile equipment. The EM66XX series is manufactured using EM's Advanced Low Power CMOS Process.
