Features:

` Low Power - 9 A active mode, ADC off
    - 15 A active mode, ADC on
    - 1.3 A standby mode
    - 0.1A sleep mode @ 3.0V, 32kHz, 25°C
` Voltage range logic incl. EEPROM 2.0 to 5.5 V
` Voltage range for the ADC is 2.6 to 5.5 V
` 2 clocks per instruction cycle
` 72 basic instructions
` EEPROM 3072 ´ 16 bit (program memory)
` RAM 128 ´ 4 bit
` EEPROM 64 ´ 8 bit (peripheral memory)
` Voltage Level Detector, 3 levels software selectable : 2.2, 2.5, 3.0 V
` 2 channel ADC, successive approximation method; conversion time at 32 kHz : 305s
` Max. 12 inputs (3 ports); port A, port B, port C
` Max. 8 outputs (2 ports); port B, port C
` Serial Write Buffer, 256 bit wide , 4 bit rates
` Oscillation supervisor and timer watchdog
` Universal 10-bit counter, PWM, event counter
` 8 internal interrupt sources (2 ´ timer , 2 prescaler, ADC, VLD, FIFO, EEPROM)
` 4 external interrupt sources (input port A )
` Frequency output; 32kHz, 2kHz, 1kHz, PWM


Application

· Sensor & detector interface
· Heat meter interface
· Security systems
· Household equipment controls
· Automotive controls
· Measurement equipment
· R/F and IR. control
· Voltage control


Pinout

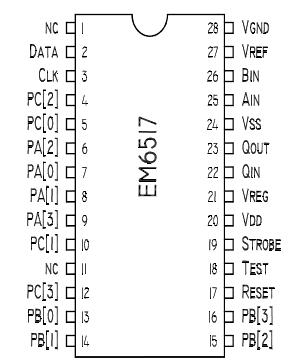

Connection Diagram


Specifications
Min.
Max.
Unit
Power supply VDD-VSS
-0.2
+6.5
V
Input voltage
VSS-0.2
VDD+0.2
V
Storage temperature
-40
+125
Electrostatic discharge to
Mil-Std-883C method 3015.7 with ref. to VSS
-2000
+2000
V
Maximum soldering conditions
10s x 250°C



Description

The EM6517-1 is an advanced single chip CMOS 4-bit microcontroller. It contains ROM, RAM, power on reset, watchdog timer, oscillation detection circuit, combined timer, event counter, prescaler, E2PROM, 2 channel ADC, serial write buffer, voltage level detector and several clock functions. The low voltage feature and low power consumption make it the most suitable controller for battery, stand alone and mobile equipment. The EM6517-1 is manufactured using EM Marin's advanced low power (ALP) CMOS Process.
