EM6050P-423-G

MICROPHONE OMNI DIRECT 6.0X5.0MM

product image

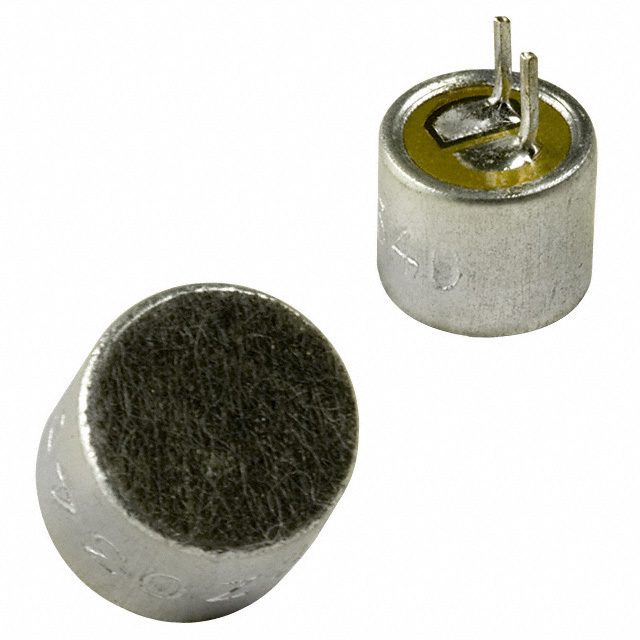

EM6050P-423-G Picture
See larger image
SeekIC No. : 002845727 Detail

EM6050P-423-G: MICROPHONE OMNI DIRECT 6.0X5.0MM

EM6050P-423-G Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EM6050P-423-G
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/3

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: - Manufacturer: Horn Industrial Co LTD
Type: Electret Condenser Output Type: Analog
Direction: Omnidirectional Operating Supply Voltage : 2.6 V to 3.6 V
Frequency Range: - Sensitivity: -42dB ±3dB
S/N Ratio: 40dB Impedance: 2.2 kOhm
Voltage - Rated: - Current - Supply: 500µA
Port Location: Top Seal Rating: None
Termination: Solder Pins/Posts Size / Dimension: 6.00mm Dia
Height (Max): 5.90mm Shape: Circular

Description

Series: -
Type: Electret Condenser
Output Type: Analog
Direction: Omnidirectional
Impedance: 2.2 kOhm
Current - Supply: 500µA
Port Location: Top
Seal Rating: None
Termination: Solder Pins/Posts
Shape: Circular
Packaging: Bulk
Sensitivity: -42dB ±3dB
Size / Dimension: 6.00mm Dia
Frequency Range: -
Voltage - Rated: -
Manufacturer: Horn Industrial Co LTD
S/N Ratio: 40dB
Height (Max): 5.90mm


Parameters:

Technical/Catalog InformationEM6050P-423-G
VendorHorn Industrial Co LTD
CategoryAudio Products
Sensitivity-42dB ±3dB
Voltage - Rated 4.5V
Current 500A
TypeElectret Condenser
Size / DimensionCircular - 6mm Dia x 5mm H
Frequency100Hz ~ 10kHz
S/N Ratio40dB
Filter Type-
Impedance2.2K Ohm
TerminationSolder Pins/Posts
DirectionOmnidirectional
Port LocationTop
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names EM6050P 423 G
EM6050P423G
359 1054 ND
3591054ND
359-1054
