SeekIC No. : 002845665 Detail

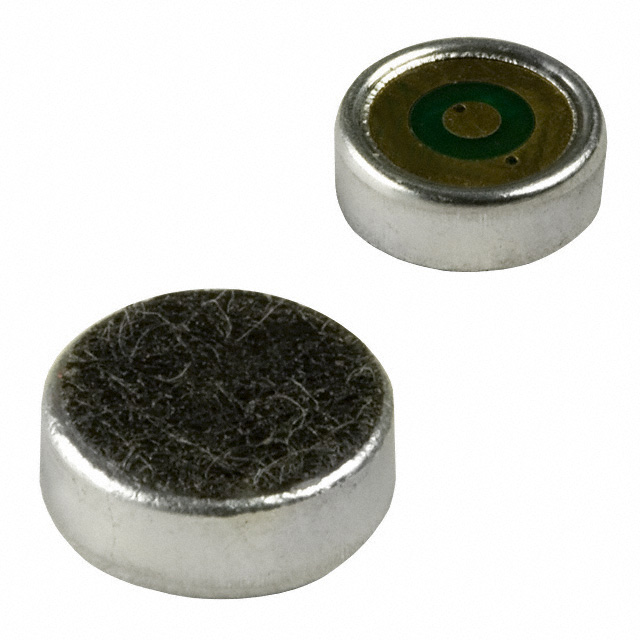

EM6022S-42BC10&33: MIC OMNI DIRECT 6.0X2.2MM -42DB

EM6022S-42BC10&33 Data Sheet

Get Latest Price

Part Number:: EM6022S-42BC10&33
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

EM6011-46FC10&33 evaluate
MIC OMNI DIRECT 6.0X1.1MM -46DB
EM6011-46FC10&33-G evaluate
MIC OMNI DIRECT 6.0X1.1MM -46DB
EM6013-48BC10&33 evaluate
MIC OMNI DIRECT 6.0X1.3MM -48DB

Product Details

Quick Details

Series:	-	Manufacturer:	Horn Industrial Co LTD
Type:	Electret Condenser	Output Type:	Analog
Direction:	Omnidirectional	Operating Supply Voltage :	2.6 V to 3.6 V
Frequency Range:	-	Sensitivity:	-42dB ±2dB
S/N Ratio:	60dB	Impedance:	2.2 kOhm
Voltage - Rated:	-	Current - Supply:	500µA
Port Location:	Top	Seal Rating:	None
Termination:	Solderless (Bullseye)	Size / Dimension:	6.00mm Dia
Height (Max):	2.40mm	Shape:	Circular

Description

Series: -
Type: Electret Condenser
Output Type: Analog
Direction: Omnidirectional
S/N Ratio: 60dB
Impedance: 2.2 kOhm
Current - Supply: 500µA
Port Location: Top
Seal Rating: None
Shape: Circular
Packaging: Bulk
Sensitivity: -42dB ±2dB
Size / Dimension: 6.00mm Dia
Height (Max): 2.40mm
Termination: Solderless (Bullseye)
Frequency Range: -
Voltage - Rated: -
Manufacturer: Horn Industrial Co LTD

Parameters:

Technical/Catalog Information	EM6022S-42BC10&33
Vendor	Horn Industrial Co LTD
Category	Audio Products
Sensitivity	-42dB ±2dB
Voltage - Rated	2V
Current	500A
Type	Electret Condenser
Size / Dimension	Circular - 6mm Dia x 2.2mm H
Frequency	100Hz ~ 10kHz
S/N Ratio	60dB
Filter Type	10pF and 33pF
Impedance	2.2K Ohm
Termination	Solderless (Bullseye)
Direction	Omnidirectional
Port Location	Top
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	EM6022S 42BC10&33 EM6022S42BC10&33 359 1028 ND 3591028ND 359-1028
