Position: Home  > All Categories> Integrated Circuits (ICs) > EM6022P-42BC10&33-G

EM6022P-42BC10&33-G

MIC OMNI DIRECT 6.0X2.2MM -42DB

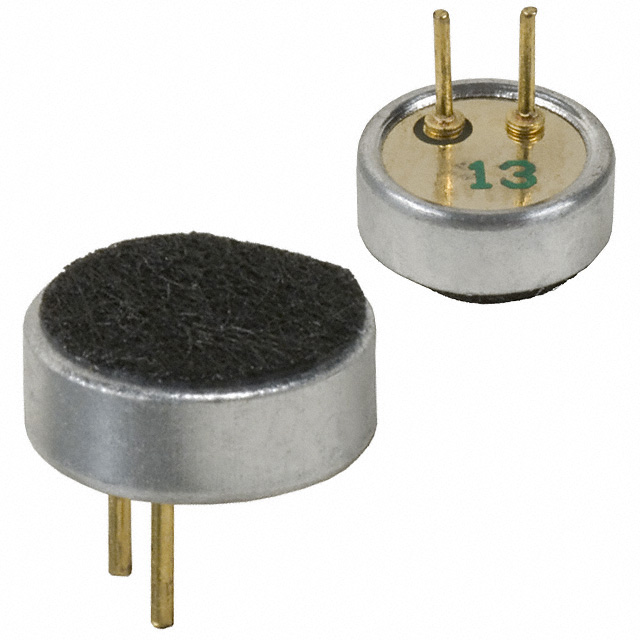

product image

EM6022P-42BC10&33-G Picture
See larger image
SeekIC No. : 002845664 Detail

EM6022P-42BC10&33-G: MIC OMNI DIRECT 6.0X2.2MM -42DB

EM6022P-42BC10&33-G Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EM6022P-42BC10&33-G
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: - Manufacturer: Horn Industrial Co LTD
Type: Electret Condenser Output Type: Analog
Direction: Omnidirectional Operating Supply Voltage : 2.6 V to 3.6 V
Frequency Range: - Sensitivity: -42dB ±2dB
S/N Ratio: 60dB Impedance: 2.2 kOhm
Voltage - Rated: - Current - Supply: 500µA
Port Location: Top Seal Rating: None
Termination: Solder Pins/Posts Size / Dimension: 6.00mm Dia
Height (Max): 2.70mm Shape: Circular

Description

Series: -
Type: Electret Condenser
Output Type: Analog
Direction: Omnidirectional
S/N Ratio: 60dB
Impedance: 2.2 kOhm
Current - Supply: 500µA
Port Location: Top
Seal Rating: None
Termination: Solder Pins/Posts
Shape: Circular
Packaging: Bulk
Sensitivity: -42dB ±2dB
Size / Dimension: 6.00mm Dia
Frequency Range: -
Voltage - Rated: -
Height (Max): 2.70mm
Manufacturer: Horn Industrial Co LTD


Parameters:

Technical/Catalog InformationEM6022P-42BC10&33-G
VendorHorn Industrial Co LTD
CategoryAudio Products
Sensitivity-42dB ±2dB
Voltage - Rated 2V
Current 500A
TypeElectret Condenser
Size / DimensionCircular - 6mm Dia x 2.2mm H
Frequency100Hz ~ 10kHz
S/N Ratio60dB
Filter Type10pF and 33pF
Impedance2.2K Ohm
TerminationSolder Pins/Posts
DirectionOmnidirectional
Port LocationTop
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names EM6022P 42BC10&33 G
EM6022P42BC10&33G
359 1065 ND
3591065ND
359-1065
