Position: Home  > All Categories> Integrated Circuits (ICs) > EM58P300

EM58P300

Features: • EM58P300 ROM : 64k x 10 bits (21 sec@6K sample rate).• Single power supply 2.4V ~ 5.5V.• Port1 and Port2 with wake-up function, Port3.2 with programmable IR (38KHz carry) communication function.• Power down mode for saving power consumption.• Single ROM f...

product image

EM58P300 Picture
See larger image
SeekIC No. : 004335953 Detail

EM58P300: Features: • EM58P300 ROM : 64k x 10 bits (21 sec@6K sample rate).• Single power supply 2.4V ~ 5.5V.• Port1 and Port2 with wake-up function, Port3.2 with programmable IR (38KHz car...

EM58P300 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EM58P300
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• EM58P300 ROM : 64k x 10 bits (21 sec@6K sample rate).
• Single power supply 2.4V ~ 5.5V.
• Port1 and Port2 with wake-up function, Port3.2 with programmable IR (38KHz carry) communication function.
• Power down mode for saving power consumption.
• Single ROM for voice, melody, sound effect and program data.
• Readable ROM code data.
• One 6-bit timer overflow control.
• Two stacks for subroutine calling.
• Dual channel output simultaneously : (voice + voice), (voice + dual tone melody) or (voice + dual tone sound effect).
• 5-bit ASPCM synthesizer.
• Dual tone melody/sound effect generator with programmable envelope.
• Multiple playing sppeeds in 2KHz ~ 32KHz for voice playback.
• Multiple tempos and variable beats for dual tone melody/sound effect play-back.
• Multiple levels of volume control.
• Fixed current D/A to drive external connected transistor for audio output.


Pinout

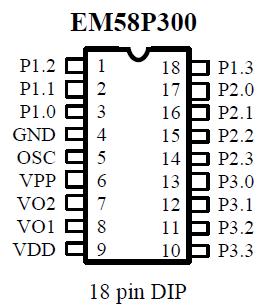

Connection Diagram


Specifications

Item
Symbol
Min.
Max.
Unit
Supply voltage
VDD-VSS
-0.3
6.0
V
Input voltage
VIN
VSS-0.3
VDD+0.3
V
Operating temperature
TOP
-20
70
Storage temperature
TSTG
-55
+125



Description

EM58P300 is a tiny-controller-based voice synthesizer/dual tone melody/dual tone sound effect IC which contains all the function of EM58000 series and has an OTP (One Time Programmable) ROM inside.
