Features: · 64 bit memory array laser programmable· Several options of data rate and coding available· On chip resonance capacitor· On chip supply buffer capacitor· On chip voltage limiter· Full wave rectifier on chip· Large modulation depth due to a low impedance modulation device· Operating freq...
EM4100: Features: · 64 bit memory array laser programmable· Several options of data rate and coding available· On chip resonance capacitor· On chip supply buffer capacitor· On chip voltage limiter· Full wav...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
DescriptionThe chip is used in passive UHF read-only transponder applications. It is powered up by...
DescriptionThe EM4133 is a CMOS integrated circuit intended for use in passive ontactless Read/Wri...
Parameter |
Symbol |
Conditions |
Maximum DC Current forced on COIL1 & COIL2 |
ICOIL |
±30mA |
Power Supply |
VDD |
-0.3 to 7.5V |
Storage Temp. Die form |
Tstore |
-55 to +200°C |
Storage Temp. PCB form |
Tstore |
-55 to +125°C |
Electrostatic discharge maximum to MIL-STD-883C method 3015 |
VESD |
1000V |

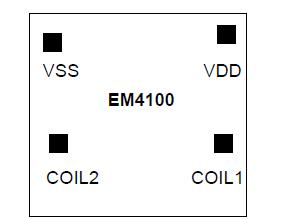

The EM4100 (previously named H4100) is a CMOS integrated circuit for use in electronic Read Only RF Transponders. The circuit is powered by an external coil placed in an electromagnetic field, and gets its master clock from the same field via one of the coil terminals. By turning on and off the modulation current, the chip will send back the 64 bits of information contained in a factor y pre-programmed memory array.
The programming of the chip is performed by laser fusing of polysilicon links in order to store a unique code on each chip.
The EM4100 has several metal options which are used to define the code type and data rate. Data rates of 64, 32 and 16 periods of carrier frequency per data bit are available. Data can be coded as Manchester, Biphase or PSK.
Due to low power consumption of the logic core, no supply buffer capacitor is required. Only an external coil is needed to obtain the chip function. A parallel resonance capacitor of 74 pF is also integrated.
