Features:

` Integrated PLL system to achieve self adaptive carrier frequency to antenna resonant frequency
` No external quartz required
` 100 to 150 kHz carrier frequency range
` Direct antenna driving using bridge drivers
` Data transmission by OOK (100% Amplitude Modulation) using bridge driver
` Data transmission by Amplitude Modulation with externally adjustable modulation index using single ended driver
` Multiple transponder protocol compatibility (Ex: EM400X, EM4050, EM4150, EM4070, EM4170, EM4069..)
` Sleep mode 1A
` USB compatible power supply range
` 40 to +85°C temperature range
` Small outline plastic package SO16




Application

· Car immobiliser
· Hand held reader
· Low cost reader




Pinout

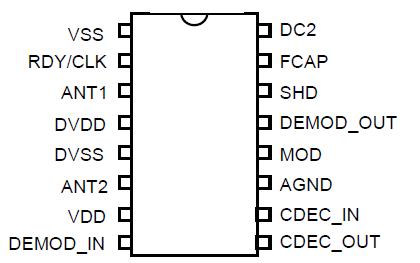

Connection Diagram




Specifications

Parameter
Symbol
Conditions
Storage temperature
TSTO
-55 to +150°C
Maximum voltage at VDD
VDDmax
VSS+6V
Minimum voltage at VDD
VDDmin
VSS -0.3V
Max. voltage other pads
VMAX
VDD +0.3V
Min. voltage other pads
VMIN
VSS -0.3V
Max. junction temperature
TJMAX
+125°C
Electrostatic discharge max.
to MIL-STD-883C method
3015 against VSS
VESD
4000V
Electrostatic discharge max.
to MIL-STD-883C method
3015 (only for pins ANT1
and ANT2) against VSS
VESD_ANT
10000V
Maximum Input/Output
current on all pads except
VDD, VSS, DVDD, DVSS,
ANT1, ANT2, RDY/CLK
IIMAX
IOMAX
10mA
Maximum AC peak current
on ANT1 and ANT2 pads
100 kHz duty cycle 50%
IANTmax
300mA





Description

The EM4095 (previously named P4095) chip is a CMOS integrated transceiver circuit intended for use in an RFID basestation to perform the following functions:
- antenna driving with carrier frequency
- AM modulation of the field for writable transponder
- AM demodulation of the antenna signal modulation induced by the transponder
- communicate with a microprocessor via simple interface.
